270kw 4000mm Glass Annealing Electrothermal Decorating Lehr

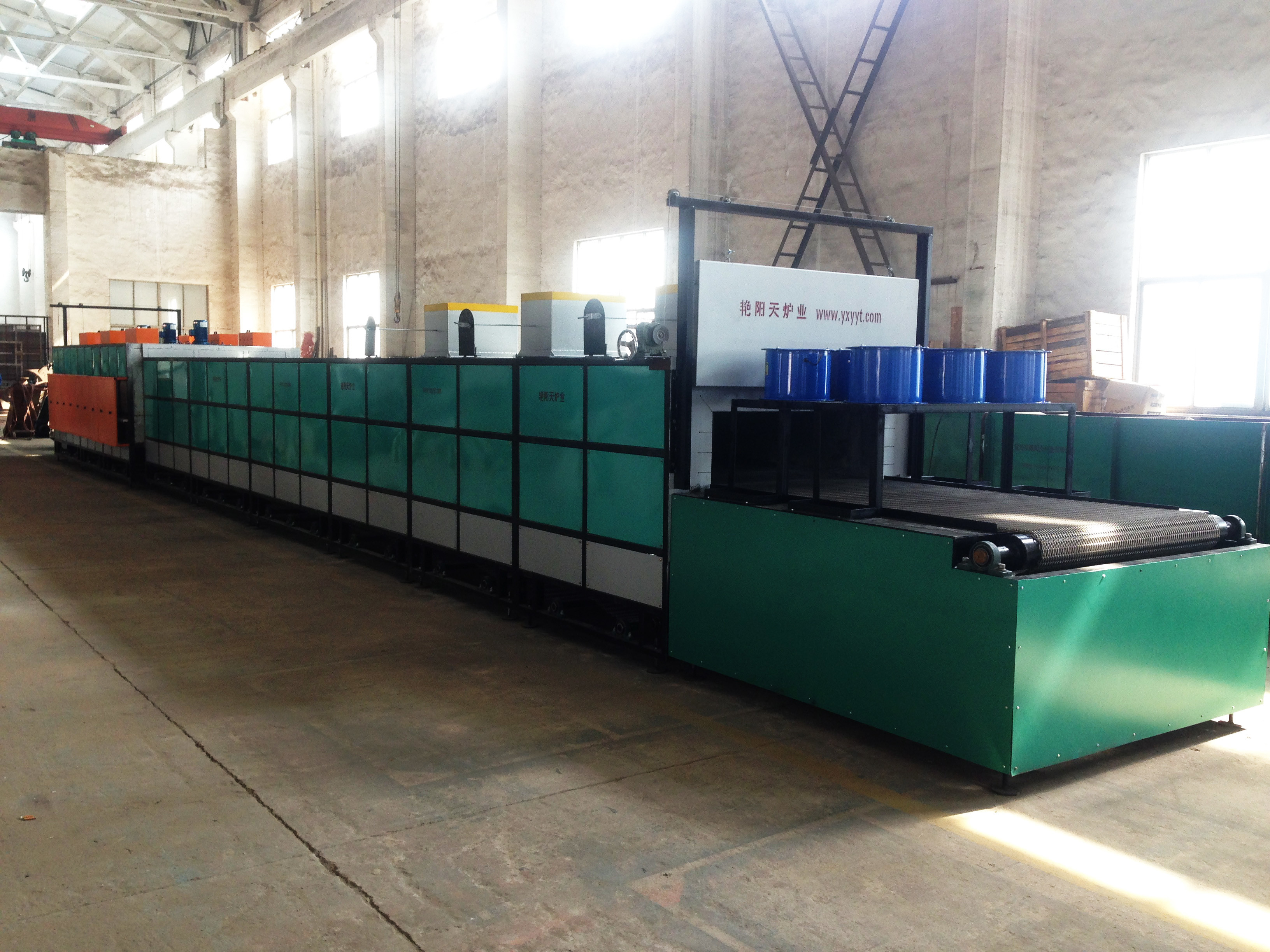

Mesh belt type glass electro thermal decorating lehr

Product description: this furnace is mainly used for glass wine bottles, glassware, daily glass and process glass, high-temperature (stained paper) trademark decoration, gold decoration and drying of low-temperature glass paint; the total length of the furnace is 18 to 60 meters; the maximal use temperature is 650℃; and it is suitable for large-batch continuous production.

1. Chamber dimension: 9 to 25 steres
2. Maximal use temperature: 650℃(temperature adjustable)
3. Electric power: 15 to 150(Kw/380V)
4. Heating mode: electric heating
5. Electrothermal element: quartz electrothermal tube
6. Temperature control mode: PID intelligent digital display temperature control, SCR module control, linear proportional output, manual and automatic regulation, and temperature control precision ±1℃
7. Temperature control point: 3 to 5
8. Exhaust hole: 2 to 3 (concentrated exhaust)
9. Mesh belt material: 1Cr13 stainless steel or 304 stainless steel
10. Mesh speed control: AC excitation speed regulation or variable frequency speed regulation.

1.  Non-standard custom equipment, mainly used for daily use glassware such as glass bottles, glass cups and other glass products high and low temperature decorating (high temperature glass ink, drawing paper)
2. Can also be used for: daily use glass, pressed glass, lighting glass and other cold and hot annealing heat treatment.

The production process is that the product is placed on the mesh belt, driven by the mesh belt, and heated from the feed end into the furnace, through the furnace opening to form, then gradually cooled by the cooling chamber, and then collected by the discharge end to complete the entire heat treatment process.

Please contact us for details, we will tailor-made for you!
