Product Details:
|
| Starting Power: | 72-250Kw/380V | Maximum Use Temperature: | 1000℃ |
|---|---|---|---|
| Temperature Control Precision: | ±1℃ | Furnace Length: | 21-45m |
| Common Temperature: | ≤900℃ | Certificate: | CE |
| High Light: | Strengthening Industrial Glass Furnace,Continuous Industrial Glass Furnace |
||

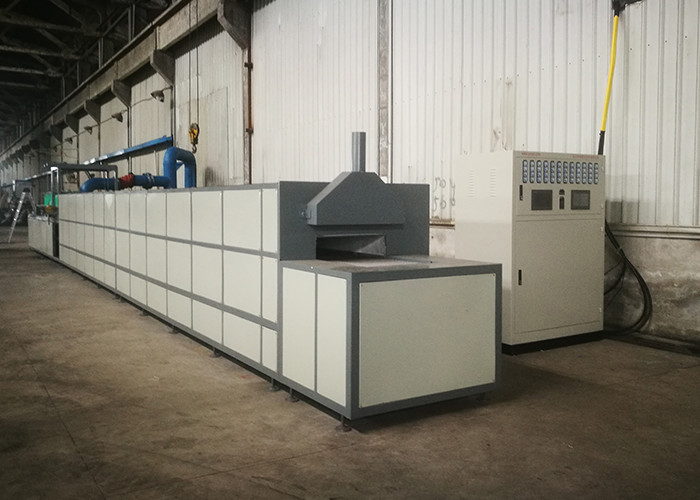

Mesh Belt Type Electric Heating Glass Product Continuous Hot Bending ( Strengthening ) Furnace
Mesh Belt Type Electric Heating Glass Product Continuous Hot Bending ( Strengthening ) Furnace,External circulation mechanism can be designed to improve production efficiency.
| The main technical parameters | |
| Furnace length |
21-45m |
| Starting power |
72-250Kw/380V |
| Temperature control precision |
±1℃ |
| Maximum use temperature |
1000℃ |
| Mesh belt width |
500-1200mm |
| Hot air circulation | Mesh belt width ≥1.2m can consider hot air circulation |
| Control mode | PID intelligent control system, multi-point control |
|
Common temperature |
≤900℃ |
| Transfer method | 310S stainless steel mesh belt, frequency conversion speed regulation |
| Furnace structure | Modular; on-site assembly |
| The outlet can be designed with high wind pressure enhancement function | |

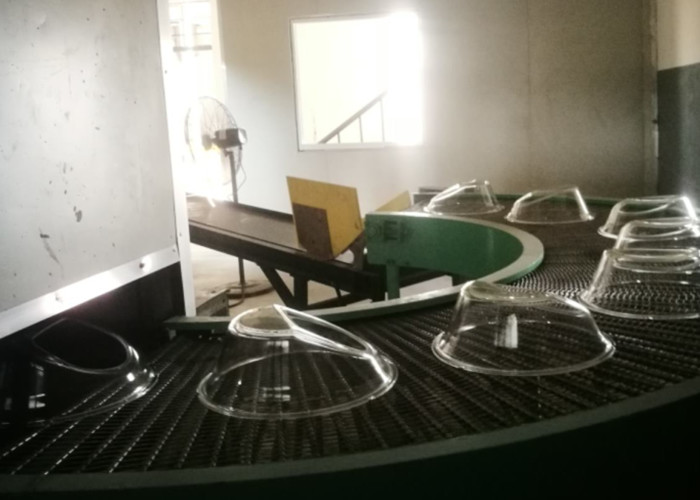

Uses: Non-standard customized equipment, mainly used for forming and annealing heat treatment of glass products such as lighting glass, blown (pressed) glass, home glass, glass fruit tray and other hot bending and hot melt forming glass products.
Can also be used for: Strengthening function of instrument glass, lighting glass, functional glass.
Please contact us for details, we will provide you with a full set of design and technology tailored for you!
