Product Details:
|
| Roller Diameter: | Ø40-60mm | Maximum Use Temperature: | 1000℃ |
|---|---|---|---|
| Temperature Control Precision: | ±1℃ | Furnace Length: | 26-60m |
| Furnace Structure: | Modular; On-site Assembly | Transfer Method: | Helical Gear Transmission |
| Common Temperature: | ≤900℃ | Daily Output (24h): | 100-1500 Square Meters / Day |
| High Light: | Crystal Glass Mosaic Machine,Continuous Glass Mosaic Machine |
||

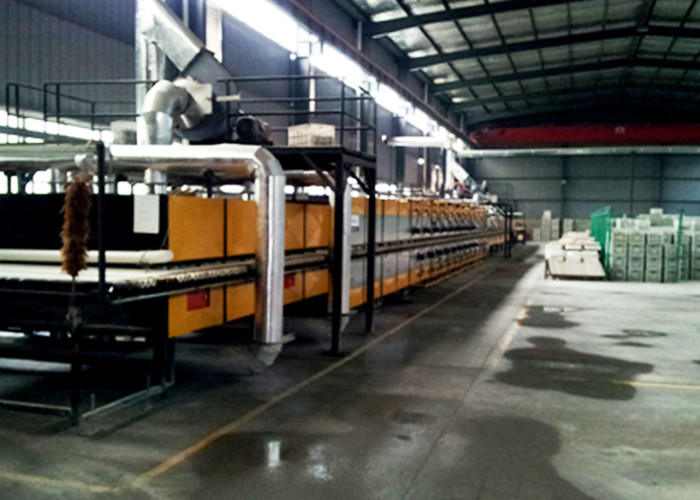

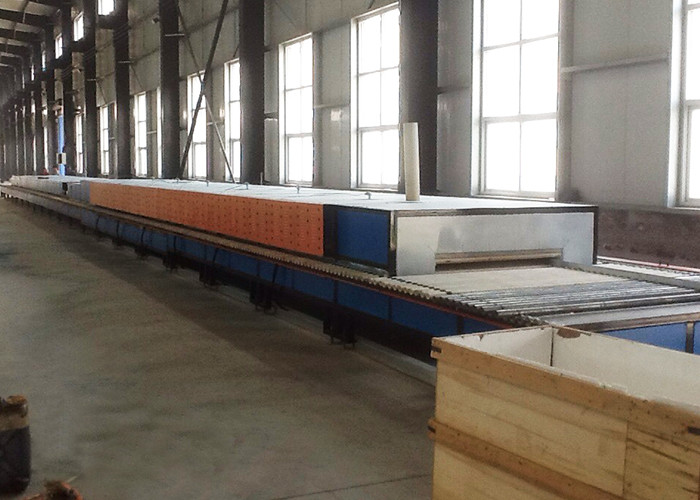

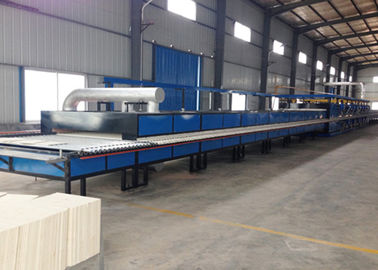

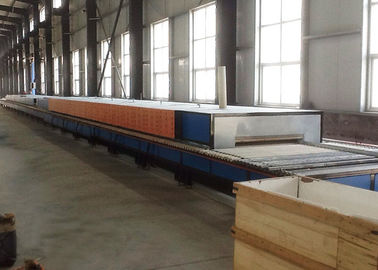

Continuous Production Of Crystal Glass Mosaic Production Line
The company provides crystal glass mosaic production line
| The main technical parameters | |
| Furnace length |
26-60m |
| Roller diameter |
Ø40-60mm |
| Chamber width |
800-2500mm |
| Temperature control precision |
±1℃ |
| Maximum use temperature |
1000℃ |
| Transfer method |
Helical gear transmission |
| Heating mode | Electricity, natural gas, liquefied petroleum gas |
| Control mode | PID intelligent control system, multi-point control |
|
Common temperature |
≤900℃ |
| Daily output (24h) | 100-1500 square meters / day |
| Roller speed | Frequency control |
| Roller material | Use stainless steel rollers and high temperature ceramic rollers in different parts of the furnace as required |
| Furnace structure | Modular; on-site assembly |
Uses: Non-standard customized equipment, mainly used for the continuous production of crystal glass mosaics

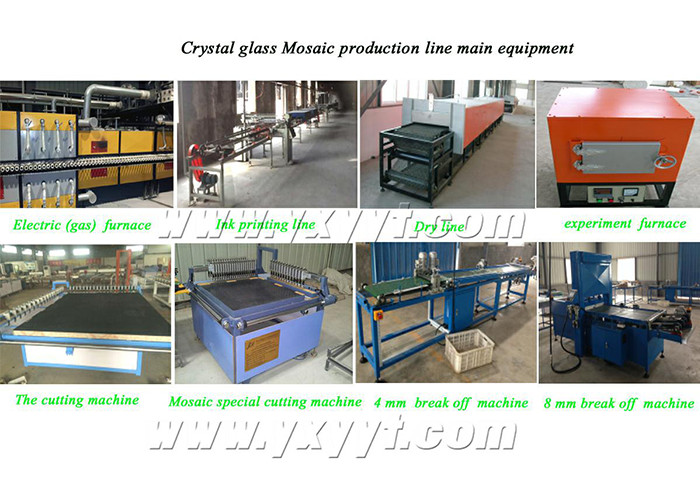

Production line equipment composition: glass cutting machine, printing and drying line, breaking and typesetting machine, edge melting furnace, back film drying line and other equipment.
Our company provides a full set of technology and equipment for crystal mosaic production, please contact us for details, we will tailor it for you!
