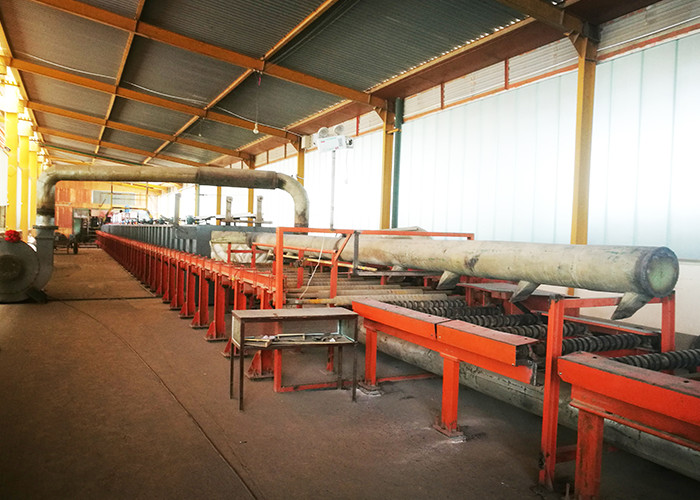

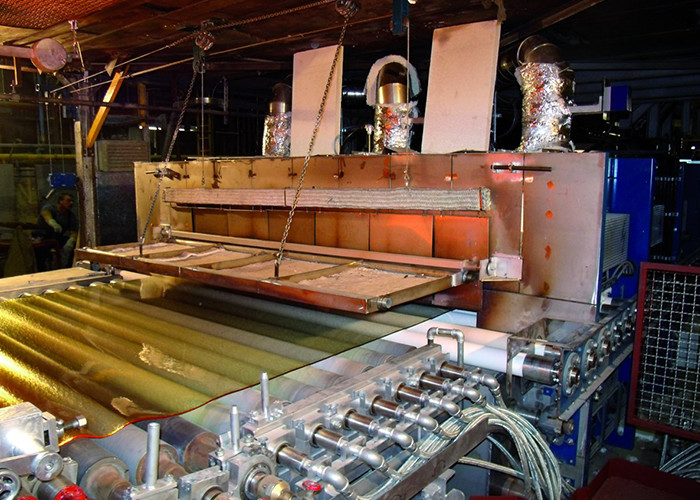

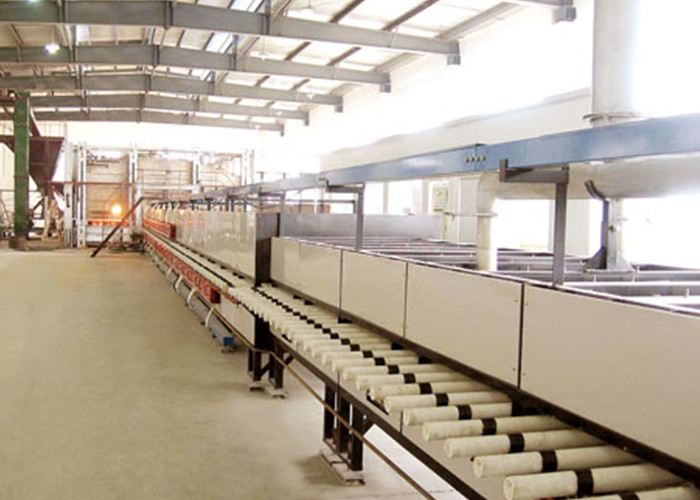

Roller - Type Electric Heating Rolled Glass Continuous Annealing Furnace
Roller-type electric heating rolled glass continuous annealing furnace, Non-standard customized equipment.
| The main technical parameters | |
| Furnace length |
26-60m |
| Chamber width |
800-2500mm |
| Roller diameter |
Ø60-120mm |
| Temperature control precision |
±1℃ |
| Maximum use temperature |
850℃ |
| Transfer method |
Helical gear + roller rod transmission |
| Control mode | PID intelligent control system, multipoint control |
|
Common temperature |
≤800℃ |
| Starting power |
120-350KW/380V |
| Roller speed | Frequency control |
| Roller material | cast heat-resistant steel, quartz ceramics, ceramics in different parts of the furnace according to needs Tube and other materials |
| Furnace structure | Modular; on-site assembly |
Non-standard customized equipment, mainly used for thermal annealing of colored glazed glass, embossed glass, microcrystalline glass, jade glass.
It can also be used for the hot bending and hot-melting functions of instrument glass, lighting glass and functional glass.
Please contact us for details, we will tailor-made for you!
