Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	Yan Yang Tian
Certification:	CE
Model Number:	Non-standard customized equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Export package or according the customer's requirement
Delivery Time:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	5 Set/Sets per Month

Contact Now

Description

Common Temperature:	≤900℃	Maximum Use Temperature:	1000℃
Furnace Length:	26-60m	Furnace Structure:	Modular; On-site Assembly
Certificate:	CE	Brand:	Yan Yang Tian
High Light:	1000 ℃ Industrial Glass Furnace , Crystal Glass Mosaic Production Line , 1000 ℃ Glass Mosaic Production Line

The Maximum Use Temperature Of Crystal Glass Mosaic Production Line Is 1000 ℃

1 , Product Overview

The company provides crystal glass mosaic production line

2 , Parameter attribute table

The main technical parameters
Furnace length	26-60m
Roller diameter	Ø40-60mm
Chamber width	800-2500mm
Roller material	Use stainless steel rollers and high temperature ceramic rollers in different parts of the furnace as required
Furnace structure	Modular; on-site assembly
Temperature control precision	±1℃
Maximum use temperature	1000℃
Transfer method	Helical gear transmission
Heating mode	Electricity, natural gas, liquefied petroleum gas
Control mode	PID intelligent control system, multi-point control
Common temperature	≤900℃
Daily output (24h)	100-1500 square meters / day
Roller speed	Frequency control

3 , Product Usage

Non-standard customized equipment, mainly used for the continuous production of crystal glass mosaics
Production line equipment composition: glass cutting machine, printing and drying line, breaking and typesetting machine, edge melting furnace, back film drying line and other equipment.

Our company provides a full set of technology and equipment for crystal mosaic production, please contact us for details, we will tailor it for you!

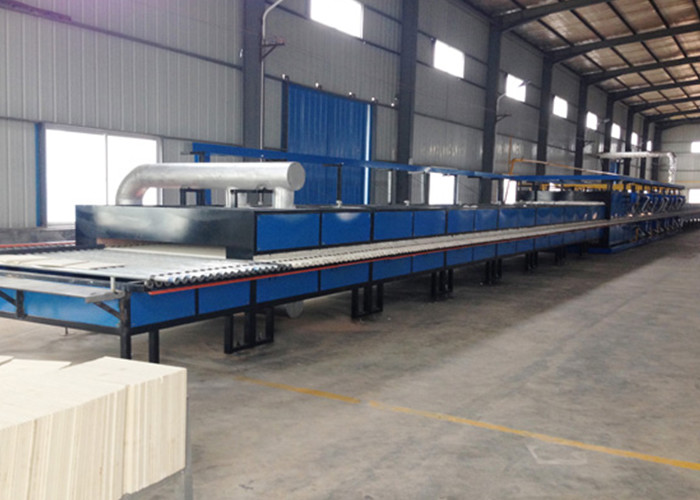

1000 ℃ Industrial Glass Furnace Crystal Glass Mosaic Production Line 0

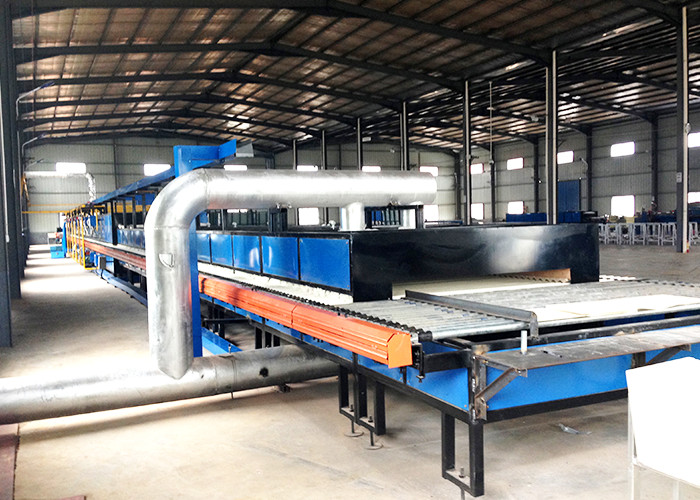

1000 ℃ Industrial Glass Furnace Crystal Glass Mosaic Production Line 1
