Product Details:
|
| Temperature Control Precision: | ±1℃ | Furnace Length: | 26-60m |
|---|---|---|---|
| Chamber Width: | 800-2500mm | Roller Diameter: | Ø60-120mm |
| Certificate: | CE | Brand: | Yan Yang Tian |
| High Light: | Electric Calendering Glass Furnace,Roller Calendering Glass Furnace,Roller Type Calendering Glass Furnace |
||

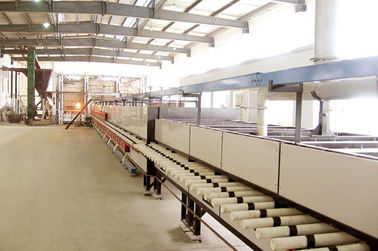

Roller - Type Electric Calendering Glass Furnace Furnace Length 26 - 60m
Roller-type electric heating rolled glass continuous annealing furnace,Non-standard customized equipment.
Roller material: according to the needs, cast heat-resistant steel, quartz ceramics, ceramics are used in different parts of the furnace
Tube and other materials
| The main technical parameters | |
| Furnace length |
26-60m |
| Chamber width |
800-2500mm |
| Roller diameter |
Ø60-120mm |
| Temperature control precision |
±1℃ |
| Maximum use temperature |
850℃ |
| Transfer method |
Helical gear + roller rod transmission |
| Control mode | PID intelligent control system, multi-point control |
|
Common temperature |
≤800℃ |
| Starting power |
120-350Kw/380V |
| Roller speed | Frequency control |
| Furnace structure | Modular; on-site assembly |
Uses: Non-standard customized equipment, mainly used for thermal annealing of colored glazed glass, embossed glass, microcrystalline glass, jade glass.
It can also be used for the hot bending and hot-melting functions of instrument glass, lighting glass and functional glass.
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
Please contact us for details, we will tailor-made for you!
