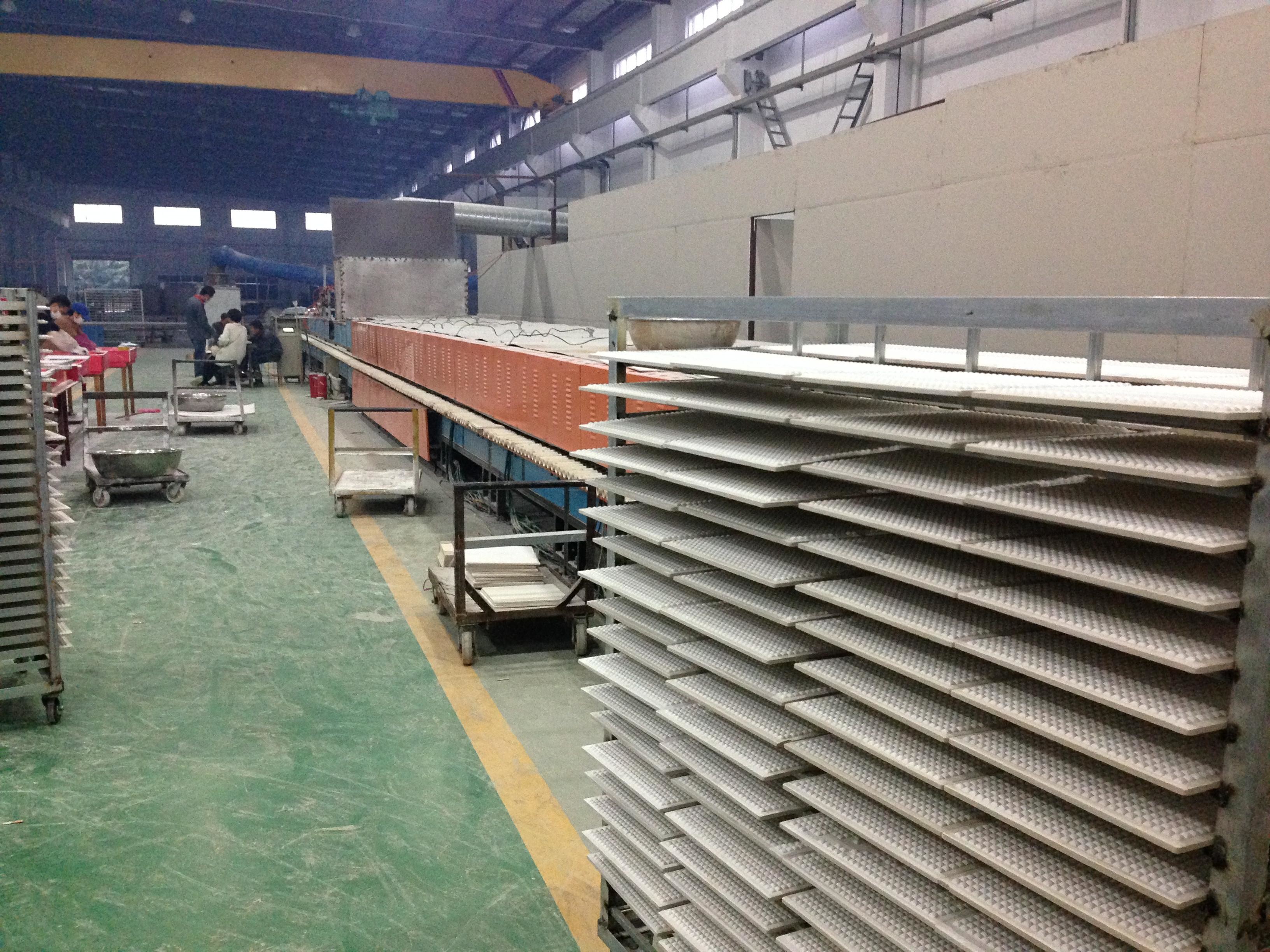

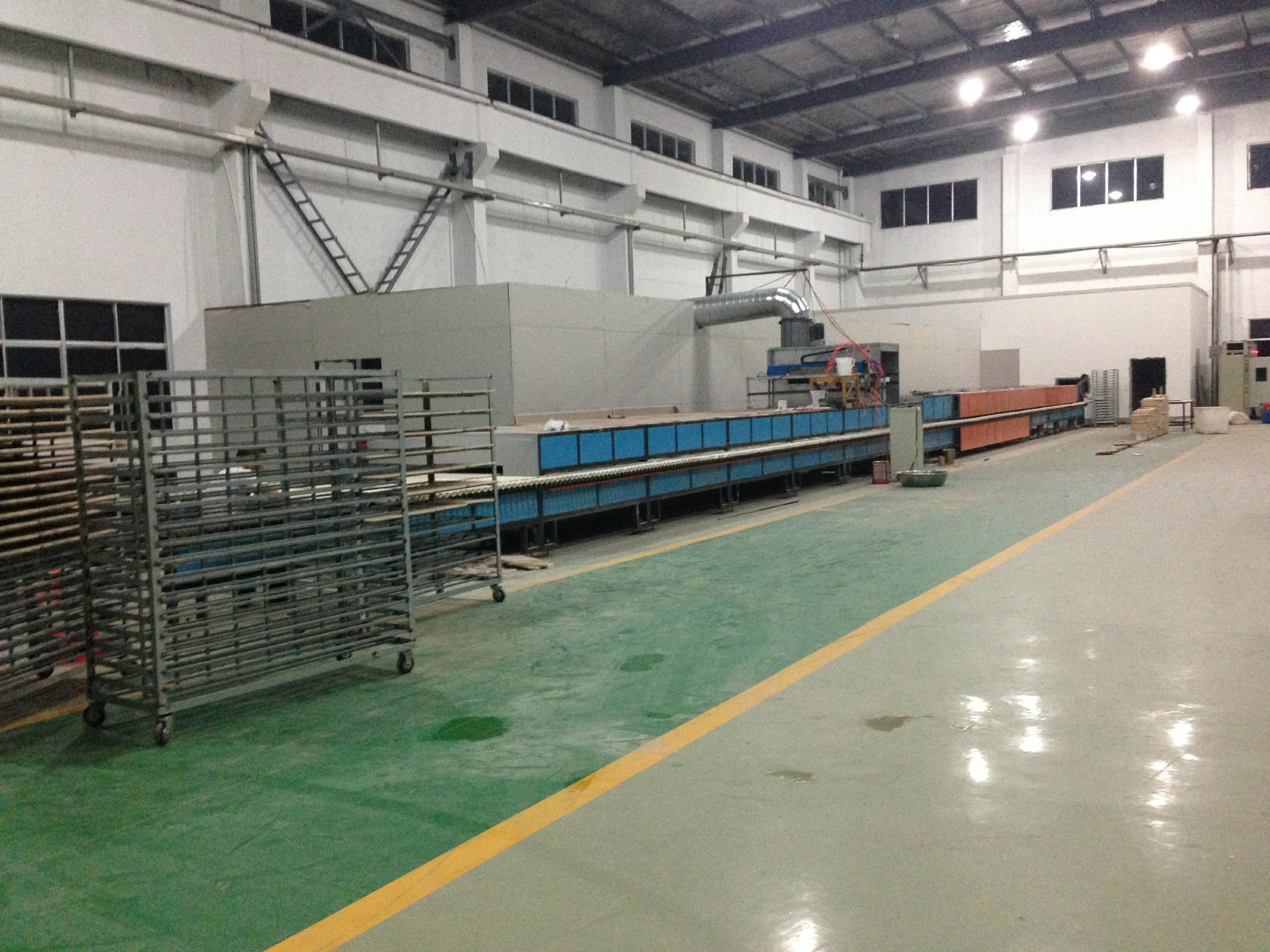

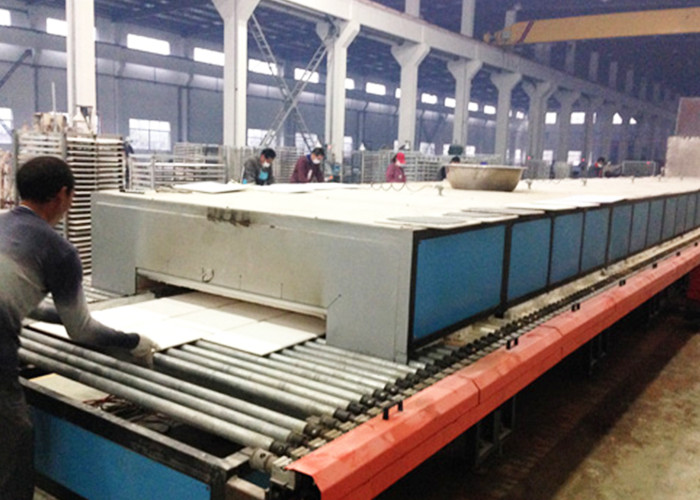

Continuous Production Line For Glass Glaze Hot - Melt Color Glaze Glass Mosaic
Production line equipment composition: ball mill, vibrating screen, mixing mixer, tablet press, sintering furnace and other equipment.
Colored glazed glass mosaic, also known as mother color crystal glass mosaic, is a new type of mosaic glass product popular in recent years
| The main technical parameters | |
| Furnace length |
26-60m |
| Chamber width |
500-1500mm |
| Roller diameter |
Ø50mm |
| Temperature control precision |
±1℃ |
| Maximum use temperature |
1000℃ |
| Transfer method |
Helical gear drive |
| Heating mode | Electric heating |
| Control mode | PID intelligent control system, multipoint control |
|
Common temperature |
≤900℃ |
| Daily output (24h) | 50-600 square meters / day |
| Roller speed | Frequency control |
| Roller material | stainless steel rollers and high-temperature ceramic rollers in different parts of the furnace as required |
| Furnace structure | Modular; on-site assembly |
Non-standard customized complete equipment, mainly used for the continuous production of hot-melt color glazed glass mosaic.
![]()
The hot-melt color glazed glass mosaic produced by the glass furnace has a strong three-dimensional sense, the color is bright and transparent, and does not fade.
Our company provides a full set of technology and equipment for the production of hot-melt colorful glazed glass mosaics. Please contact us for specific details, we will tailor it for you!
