Product Details:
|
| Power: | 36-250KW/380V | Temperature Uniformity: | ± 2-3 ℃ ± 3-5 ℃ (multipoint Test) |
|---|---|---|---|
| Heating Method: | Multi-sided Heating | Chamber Atmosphere: | Circulation Within The Mesh Belt, Radiant Heating Of The Soaking Hood |
| Annealing Furnace Length: | 18--36m | Drilling Diameter: | Customized |
| High Light: | Annealing Industrial Glass Furnace,Mesh Belt Industrial Glass Furnace |
||

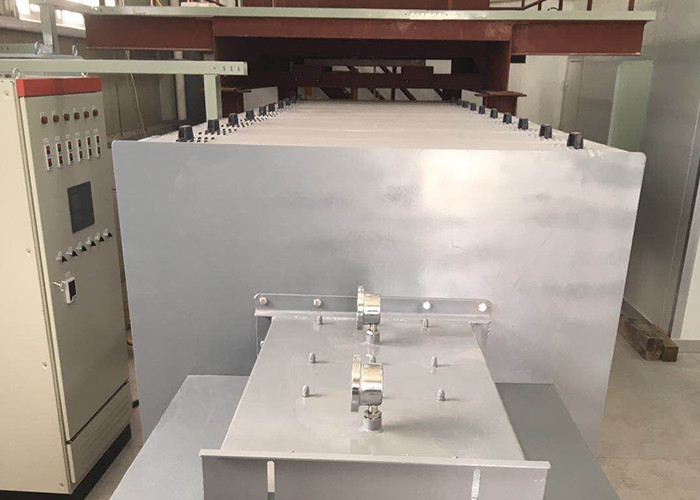

On - Site Assembled Mesh Belt Type Optical Glass Precision Annealing Furnace
Mesh belt type optical glass precision annealing furnace
| The main technical parameters | |
| Annealing furnace length |
18--36m |
| Power |
36-250Kw/380V |
| Temperature uniformity | ± 2-3 ℃ ± 3-5 ℃ (multipoint test) |
| Maximum temperature |
700℃ 850℃ 1000℃ |
| Heating method | Multi-sided heating |
| Electric heating element | Electric heating alloy wire |
| Control mode | PID intelligent multipoint partition temperature control, touch screen cross-section, 485 communication and other superior functions |
|
Chamber structure |
Circulation within the mesh belt, radiant heating of the soaking hood |
| Belt speed | Servo motor drive, adjustable network speed |
| Furnace structure | Modular, assembled on site |
Non-standard customized equipment, mainly used for precise annealing of optical glass strips and hot-pressed products, suitable for 24-hour continuous production.
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What does the product packaging look like?
Export packaging or according to customer requirements
Please contact us for details, we will tailor-made for you!
