Name: Mesh Belt Optical Glass Continuous Annealing Furnace
Brand: Yixing Sunny Furnace Co., Ltd
SKU: Non-standard customized equipment
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Power: 36-250KW/380V

Temperature Uniformity: ± 2-3 ℃ ± 3-5 ℃ (multipoint Test)

Heating Method: Multi-sided Heating

Chamber Atmosphere: Circulation Within The Mesh Belt, Radiant Heating Of The Soaking Hood

Annealing Furnace Length: 18--36m

Drilling Diameter: Customized

Highlight:

Glass Continuous Annealing Furnace

Mesh Belt Continuous Annealing Furnace

Basic Infomation

Place of Origin: Jiangsu,China

Brand Name: Yan Yang Tian

Certification: CE

Model Number: Non-standard customized equipment

Payment & Shipping Terms

Packaging Details: Export package or according the customer's requirement

Delivery Time: Negotiable

Payment Terms: T/T, L/C, Western Union

Supply Ability: 5 Set/Sets per Month

Gallery

Mesh Belt Optical Glass Continuous Annealing Furnace

Product Description

Mesh Belt Optical Glass Furnace, Precision Annealing Furnace

1, Product Overview

Mesh belt type optical glass precision annealing furnace

Performance: Energy-saving periodic operation furnace, super energy-saving structure, using fiber structure, saving 60% electricity.

2, Parameter attribute table

The main technical parameters
Annealing furnace length	18--36m
Power	36-250Kw/380V
Temperature uniformity	± 2-3 ℃ ± 3-5 ℃ (multipoint test)
Maximum operating temperature	1000℃
Heating method	Multi-sided heating
Electric heating element	Electric heating alloy wire
Control mode	PID intelligent multipoint partition temperature control, touch screen cross-section, 485 communication and other superior functions
Chamber structure	Circulation within the mesh belt, radiant heating of the soaking hood
Belt speed	Servo motor drive, adjustable network speed
Furnace structure	Modular, assembled on site

3, Product purpose

Non-standard customized equipment, mainly used for precise annealing of optical glass strips and hot-pressed products, suitable for 24-hour continuous production.

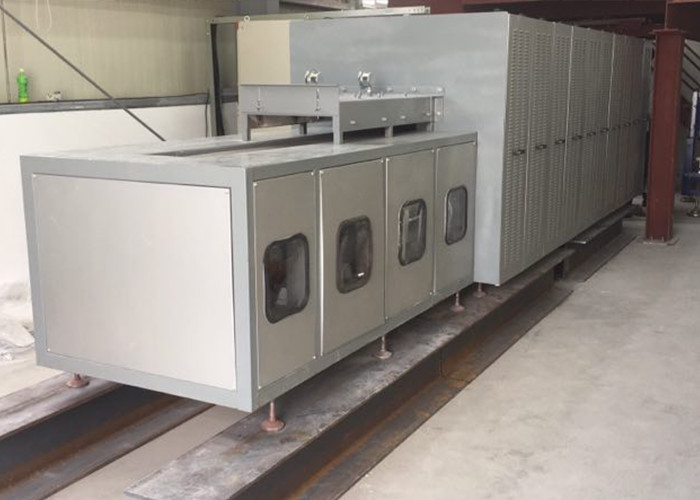

Mesh Belt Optical Glass Continuous Annealing Furnace 0

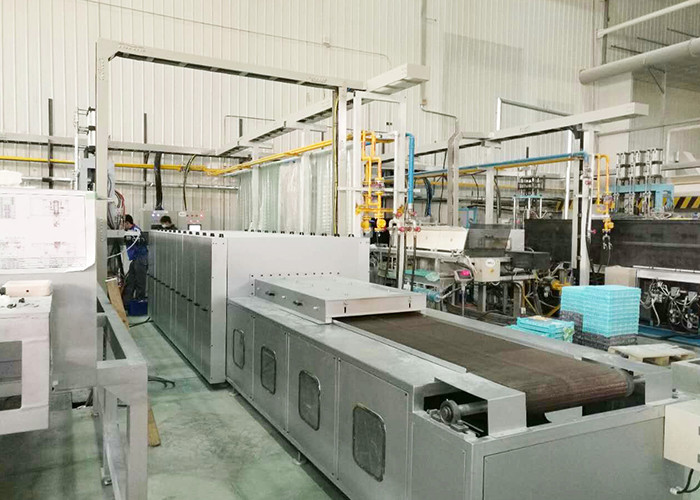

Mesh Belt Optical Glass Continuous Annealing Furnace 1

4. FAQ

1. Are you a trader or a manufacturer?

We are a company, we have our own factory

2. How long is your delivery time?

Negotiable

3. Can the product be customized?

Yes, it can be customized

4. What does the product packaging look like?

Export packaging or according to customer requirements

5, Package

Delivery period:
Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement

Please contact us for details, we will tailor-made for you!
