Product Details:
|
| Chamber Size: | 35500mm(L)×910mm(W)×350mm(H) | Power: | 350Kw/380V |
|---|---|---|---|
| Operating Temperature: | 700℃-800℃ | Temperature Uniformity: | ± 5 ℃ (constant Temperature Zone) |
| Heating Temperature Zone: | 18 Group, 36 Points, Up And Down Temperature Control | Heating Element: | Electric Heating Alloy Wire |
| High Light: | New Energy Continuous Kiln,Lithium Iron Phosphate Continuous Kiln |
||

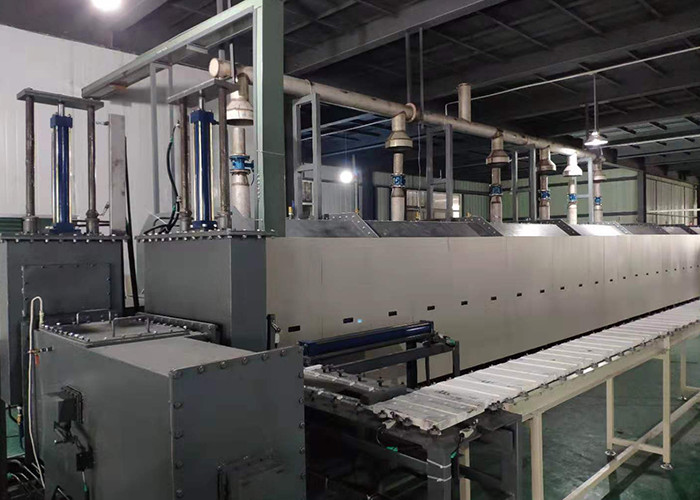

New Energy Kiln Atmosphere Protection Lithium Iron Phosphate Push Plate Kiln
| The main technical parameters | |
| Power | 350Kw/380V |
| Chamber size | 35500mm(L)×910mm(W)×350mm(H) |
| Operating temperature |
700℃-800℃ |
| Temperature uniformity | ± 5 ℃ (constant temperature zone) |
| Heating temperature zone | 18 group, 36 points, up and down temperature control |
| Heating element | Electric heating alloy wire |
| Sealing method | Front and rear double gates + replacement chamber seal |
| Control method | SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring |
| Product into kiln mode | Fully automatic hydraulic propulsion circulation system |
| Chamber atmosphere | Nitrogen (99.999%) |
| Annual output | 600 tons |
If you have a special sintering process, please contact us, we will tailor it for you!
Delivery period:
Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according the customer's requirement
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
