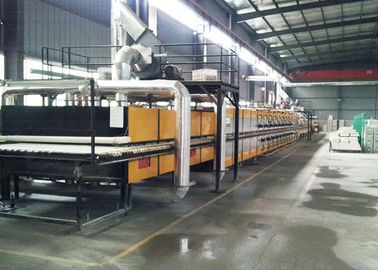

High-Performance Industrial Glass Furnace for Continuous Color Glazed Glass Mosaic Production

Customizable Glass Furnace Can Continuously Produce Color Glazed Glass Mosaic

The colored glaze glass mosaic, namely parent color crystal glass mosaic is a novel glass mosaic product which is popular in recent years. A slab of white glass (broken glass) is grinded, filtered, added with pigment with proper amount, stirred, and pressed by the bead machine to form plain films with various specifications. And the plain films are sintered, developed and molded.

(1) Furnace length: 28 to 36 meters, splicing type
(2) Section of furnace mouth: 0.8 to 1.3 meter (two plates or three plates)
(3) Maximal operating temperature: 1000℃(temperature adjustable)
(4) Electric power: 120 to 250(Kw/380V)
(5) Heating mode: electric heating
(6) Electrothermal element: furnace wire and silicon carbide rod
(7) Temperature control mode: PID intelligent digital display temperature control, SCR module control, linear proportional output, manual and automatic regulation, and temperature control precision ±1℃ (the remote control by computers can be designed)
(8) Temperature control point: 4 to 6
(9) Roller specification: φ40mm high-aluminum ceramic roller
(10) Transmission mode: bevel gear
(11) Roller speed control: secondary variable-frequency speed regulation
(12) Cooling mode: natural cooling or forced cooling

• Non-standard customized equipment, mainly used for the continuous production of crystal glass mosaics
• Production line equipment composition: glass cutting machine, printing and drying line, breaking and typesetting machine, edge melting furnace, back film drying line and other equipment.

Our company provides a full set of technology and equipment for crystal mosaic production, please contact us for details, we will tailor it for you!
