|Starting Power:||2.30-270Kw/380V||Maximum Use Temperature:||750℃|
|Temperature Control Precision:||±1℃||Furnace Length:||10-32m|
|Mesh Belt Width:||300-4000mm||Transfer Method:||304 / 321 Stainless Steel Mesh Belt, Frequency Conversion Speed Regulation|

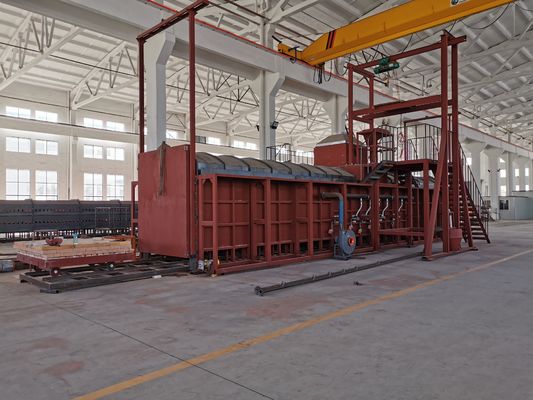

Optical Glass Strip Precision Annealing Furnace,
Mesh Belt Type Precision Annealing Furnace
For glass bottles, glass and other utensils and glass cosmetic bottles, etc.
For lighting glass, daily glass, pressing glass (cold) annealing
|Maximum temperature||750 ° C|
|Usual temperature||500-600 ° C|
|Furnace size||Width 300mm-2500mm, height 120mm-350mm (can be customized according to customer)|
|Running speed||0 ~ 500mm / min (continuously adjustable)|
|Web strip material||SUS304, SUS321 stainless steel|
|Control temperature||5 ~ 20 o'clock|
|Temperature temperature||Subregional independent control|
|Instrument control temperature accuracy||± 1 ° C|
|Uniform temperature in the furnace||≤ ± 5 ° C|
|heater||Quartz tube or electric furnace|
|Temperature control control system||PID intelligent temperature control system, touch screen control interface|
1. The temperature precision in the furnace is accurate, the homogeneity of the furnace temperature is high, and the product consistency is good.
2, the pneumatic network belt tensioning device equipment operation is stable.
3, all ceramic fiber warming cotton plate structure, rapid temperature rise, energy saving is efficient.
|note||The above parameters are for reference only, this equipment is non-standard equipment, which is customized according to the actual process requirements of the product.|
Mesh Belt Type Glass Fuel Decorating Lehr For Glassware
This lehr is mainly used for glass winebottles, glassware, daily glass and process glass, high-temperature (stained paper) trademark decoration and gold decoration; the total length of the furnace is 28 to 40 meter; the maximal use temperature is 650℃; and it is suitable for large-batch continuous production.
1. Lehr length:10-32m
2. Starting power:30-270Kw/380V
3. Transfer method:304 / 321 stainless steel mesh belt, frequency conversion speed regulation.
4. Mesh belt width:300-4000mm
5. Maximum use temperature:750℃
6. Temperature control precision:±1℃
7. Control mode:PID intelligent control system, multi-point control.
8. Hot air circulation :Mesh belt width ≥1.2m can consider by hot air circulation

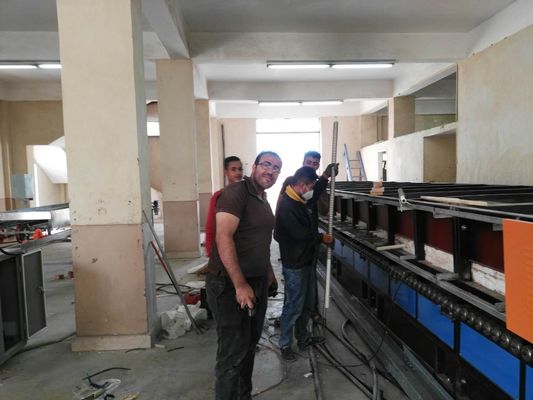

9. Lehr structure: Modular; on-site assembly
The production process is that the product is placed on the mesh belt, driven by the mesh belt, and heated from the feed end into the furnace through the furnace opening to form, then gradually cooled by the cooling chamber, and then collected by the discharge end to complete the entire heat treatment process.
Please contact us for details, we will tailor-made for you!
