|Starting Power:||2.30-270Kw/380V||Maximum Use Temperature:||750℃|
|Temperature Control Precision:||±1℃||Furnace Length:||10-32m|
|Mesh Belt Width:||300-4000mm||Transfer Method:||304 / 321 Stainless Steel Mesh Belt, Frequency Conversion Speed Regulation|

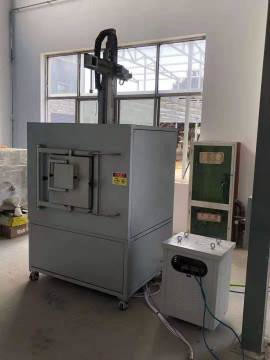

Ceramic Crystallization Annealing Furnace,

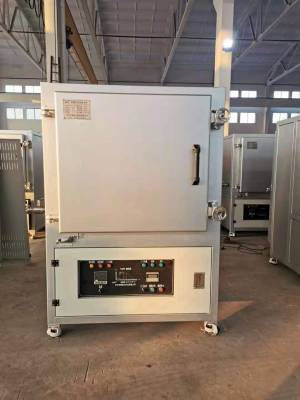

Box Type Glass Crystallization Annealing Furnace
|Equipment use||Mainly used for precision annealing and crystallization of optical microcrystalline glass|
|Temperature||950 ° C|
|Furnace temperature uniformity||≤ ± 3 ° C|
|Furnace atmosphere||Hot air cycle|
|Control temperature point||One|
|Temperature control accuracy||± 1 ° C|
|Electric heating element||Cr20ni80 electric hot alloy wire|
|Temperature control control system||PID smart program temperature control, paperless record|
1. Heat cycle in the furnace guarantees temperature uniformity
2. Multi-storey live racks are easy to adjust product size
3. External intervention new wind profile cooling meets a variety of thermostal crafts
4. 485 Communication interface to achieve remote monitoring

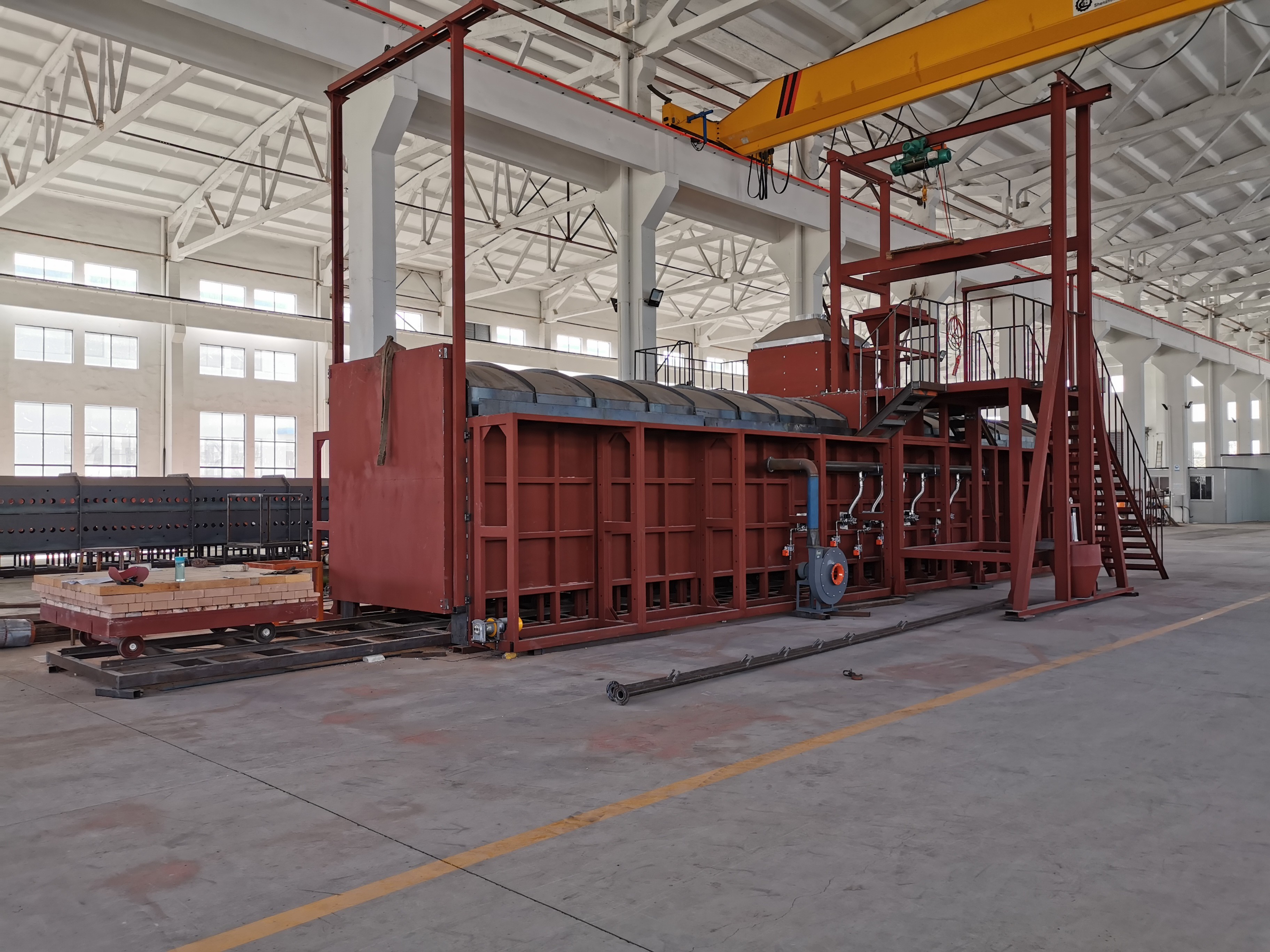

This lehr is mainly used for glass winebottles, glassware, daily glass and process glass, high-temperature (stained paper) trademark decoration and gold decoration; the total length of the furnace is 28 to 40 meter; the maximal use temperature is 650℃; and it is suitable for large-batch continuous production.
1. Lehr length:10-32m
2. Starting power:30-270Kw/380V
3. Transfer method:304 / 321 stainless steel mesh belt, frequency conversion speed regulation.
4. Mesh belt width:300-4000mm
5. Maximum use temperature:750℃
6. Temperature control precision:±1℃
7. Control mode:PID intelligent control system, multi-point control.
8. Hot air circulation :Mesh belt width ≥1.2m can consider by hot air circulation
9. Lehr structure: Modular; on-site assembly
The production process is that the product is placed on the mesh belt, driven by the mesh belt, and heated from the feed end into the furnace through the furnace opening to form, then gradually cooled by the cooling chamber, and then collected by the discharge end to complete the entire heat treatment process.
Please contact us for details, we will tailor-made for you!
