Box Type Infrared Glass Precision Annealing Furnace

1 Set
MOQ
Negotiable
Price
Box Type Infrared Glass Precision Annealing Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Starting Power: 30-270KW/380V
Maximum Use Temperature: 750℃
Temperature Control Precision: ±1℃
Furnace Length: 10-32m
Mesh Belt Width: 300-4000mm
Transfer Method: 304 / 321 Stainless Steel Mesh Belt, Frequency Conversion Speed Regulation
Highlight:

Infrared Glass Precision Annealing Furnace

,

Box Type Annealing Furnace

,

CE Infrared Industrial Glass Furnace

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Certification: CE
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 5 Set/Sets per Month
Product Description

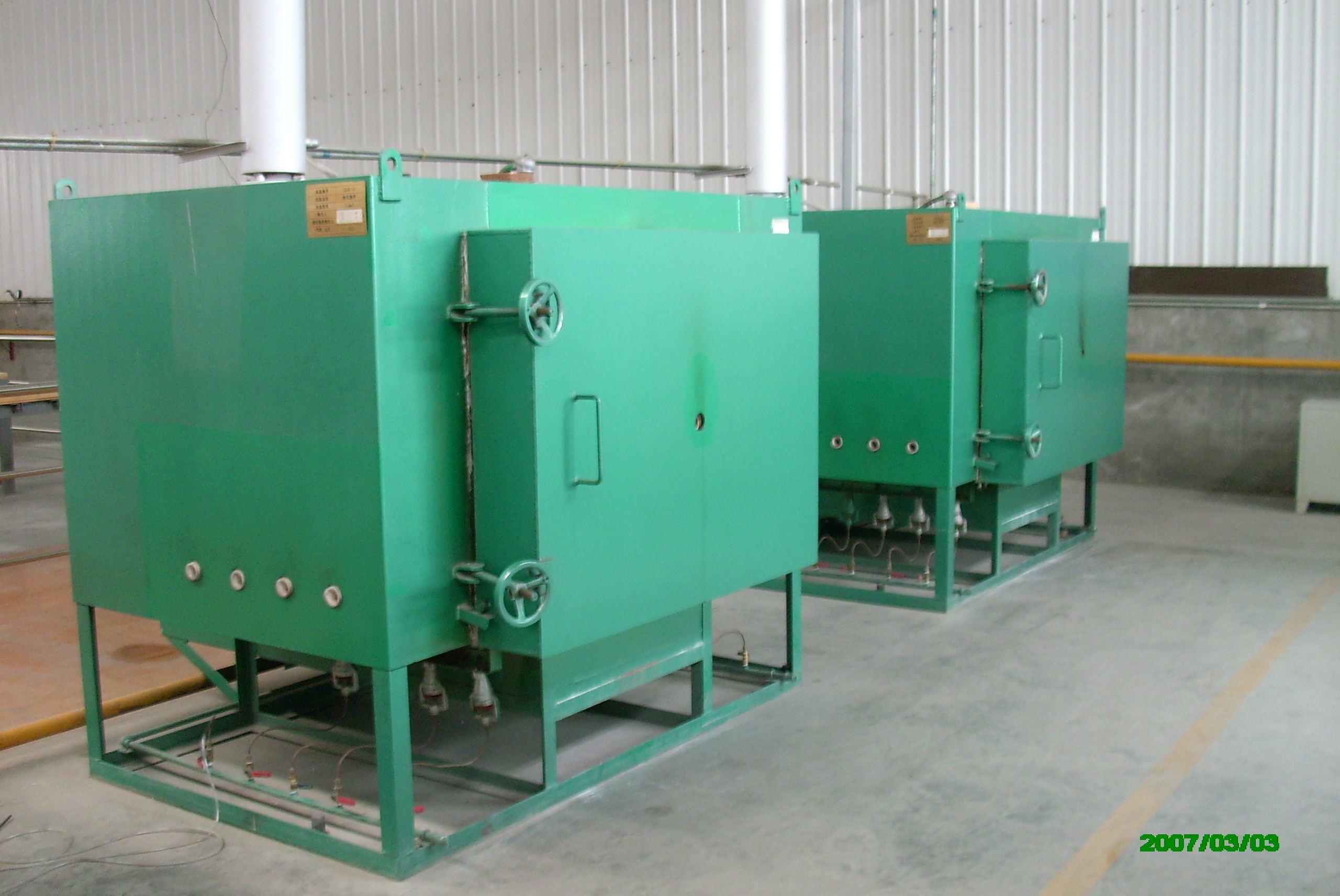

Box Type Infrared Glass Precision Annealing Furnace

Equipment purpose Mainly used for the precise annealing of infrared glass balls
Maximum temperature 750 ° C
Usual temperature 200 ° C-450 ° C
Furnace size 0.3m³-0.5m³
(It can be customized according to customer's purpose)
Inner gas atmosphere Air
Temperature control point
Instrument control temperature accuracy ± 0.1 ° C
Furnace temperature stability ≤ ± 1 ° C
Uniform temperature in the furnace ≤ ± 3 ° C
Heater material Resistance wire
Temperature control system PID program (50 paragraph) closed-loop intelligent temperature control; touch screen control interface
Furnace liner material SUS310S heat-resistant stainless steel liner
Features

1. The temperature precision of the furnace is accurate, the homogeneity of the furnace temperature is high, and the product consistency is good.

2. High temperature resistance cycle fan is used.

3. Furnace height cleanup guarantee no secondary pollution

1, Product Overview



This lehr is mainly used for glass wine bottles, glassware, daily glass and process glass, high-temperature (stained paper) trademark decoration and gold decoration; the total length of the furnace is 28 to 40 meter; the maximal use temperature is 650℃; and it is suitable for large-batch continuous production.



2, Parameter attribute table



1. Lehr length:10-32m

2. Starting power:30-270Kw/380V

3. Transfer method:304 / 321 stainless steel mesh belts, frequency conversion speed regulation.

4. Mesh belt width:300-4000mm

5. Maximum use temperature:750℃

6. Temperature control precision:±1℃

7. Control mode:PID intelligent control system, multipoint control.

8. Hot air circulation :Mesh belt width ≥1.2m can consider by hot air circulation

9. Lehr structure: Modular; on-site assembly



3, Product Usage
  1.  Non-standard custom equipment, mainly used for daily use glassware such as glass bottles, glass cups and other glass products high and low temperature decorating (high temperature glass ink, drawing paper)
  2. Can also be used for: daily use glass, pressed glass, lighting glass and other cold and hot annealing heat treatment.









4, Overview features


The production process is that the product is placed on the mesh belt, driven by the mesh belt, and heated from the feed end into the furnace through the furnace opening to form, then gradually cooled by the cooling chamber, and then collected by the discharge end to complete the entire heat treatment process.

Please contact us for details, we will tailor-made for you!
