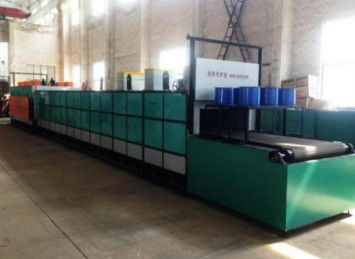

Mesh Belt Electric Glass Flower Baking (Annealing) Furnace
Non standard customized equipment, mainly used for daily glassware such as glass bottles and glasses, as well as other glass products such as high and low temperature baking flowers, high temperature glass ink, and drawing paper. It is also used for hot and cold annealing heat treatment of daily glass, pressed glass, lighting glass, etc
| The main technical parameters | |
| Furnace length |
10-32m |
| Starting power |
30-270KW/380V |
| Temperature control precision |
±1℃ |
| Maximum operating temperature |
750℃ |
| Mesh belt width |
300-4000mm |
| Hot air circulation | Mesh belt width ≥1.2m can consider hot air circulation |
| Control mode | PID intelligent control system, multipoint control |
|
Furnace structure |
Modular; on-site assembly |
| Transfer method | 304 / 321 stainless steel mesh belts, frequency conversion speed regulation |
Non-standard custom equipment, mainly used for daily use glassware such as glass bottles, glass cups and other glass products high and low temperature decorating (high temperature glass ink, drawing paper)
Can also be used for: daily use glass, pressed glass, lighting glass and other cold and hot annealing heat treatment.
Please contact us for details, we will tailor-made for you!
