Atmospheric Protecton Lithium Battery Graphite Anode New Energy Kiln

1 Set
MOQ
Negotiable
Price
Atmospheric Protecton Lithium Battery Graphite Anode New Energy Kiln
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber Size: 35500mm(L)×910mm(W)×350mm(H)
Power: 500KW/380V
Operating Temperature: 1250℃
Temperature Uniformity: ± 5 ℃ (constant Temperature Zone)
Heating Temperature Zone: 22 Groups, 44 Points, Temperature Control Up And Down
Heating Element: Equal Diameter Silicon Carbon Rod
Highlight:

Graphite Anode New Energy Kiln

,

Lithium Battery New Energy Kiln
Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 Set/Sets per Month
Product Description



Atmospheric Protection Lithium Battery Graphite Anode Push Plate Kiln



1, Product Overview

Lithium battery powder material : Atmospheric Protection Lithium Battery Graphite Anode Push Plate Kiln.
►Control method : SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring.
►Sealing method : Front and rear double gates + replacement chamber seal

2, Parameters

The main technical parameters
Chamber size 35500mm(L)×910mm(W)×350mm(H)
Power 500Kw/380V
Operating temperature 1250℃
Temperature uniformity ± 5 ℃ (constant temperature zone)
Heating temperature zone 22 groups, 44 points, temperature control up and down
Heating element Equal diameter silicon carbon rod
Product into kiln mode Fully automatic hydraulic propulsion circulation system
Chamber atmosphere Nitrogen (99.999%)
Annual output 660 tons

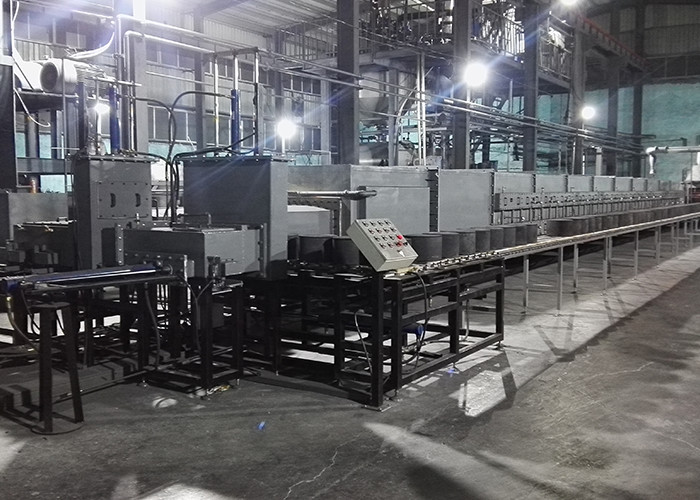

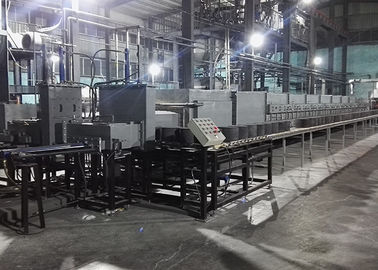

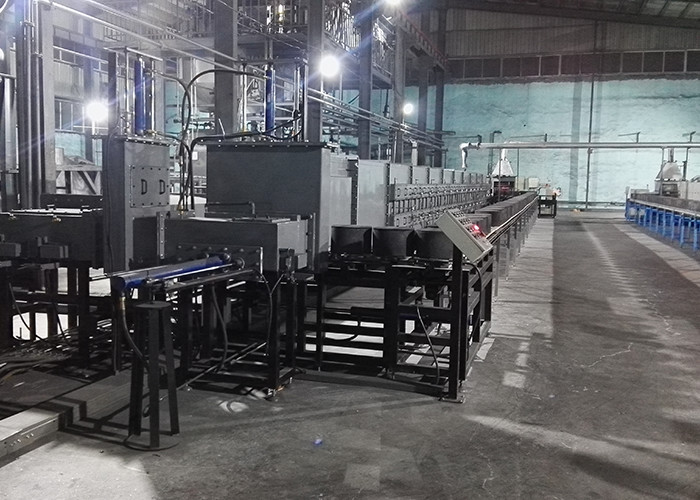

Atmospheric Protecton Lithium Battery Graphite Anode New Energy Kiln 0



Atmospheric Protecton Lithium Battery Graphite Anode New Energy Kiln 1



3, Package



Delivery period: 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement

If you have any special sintering process, please contact us, we will customize it for you!
