Product Details:
|
Furnace Length: | 21-40m | Temperature Control Point: | 4-8 |
---|---|---|---|
Electric Power: | 60-180Kw/380V | Common Temperature: | 400-650℃ |
Temperature Control Point Accuracy: | ±1℃ | Furnace Structure: | Modular Assembly Type, 2-3 Meters / Section |
High Light: | Catalyst Continuous Mesh Belt Furnace,Petrochemical Catalyst Furnace |

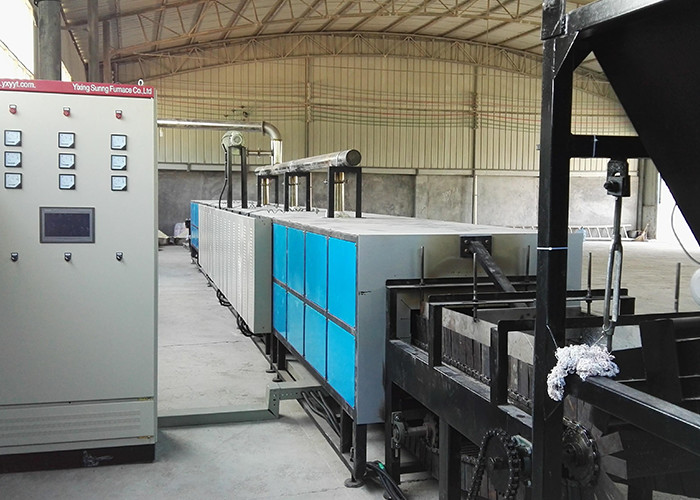

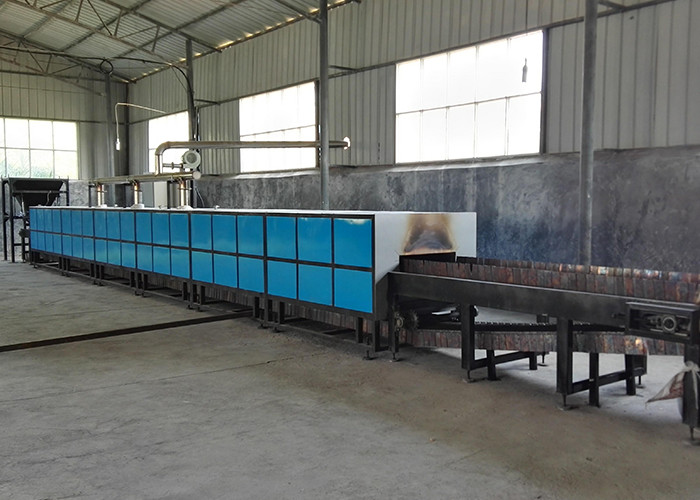

Catalyst Furnace Petrochemical Catalyst Mesh Belt Type Electric Heating Roaster
The main technical parameters | |
Furnace length |
21-40m |
Section size of Furnace mouth | 500-1.2m wide; 120-200mm high (can be customized according to requirements) |
transfer method | 310S metal mesh belt with ribs, frequency conversion speed regulation |
Designed maximum operating temperature |
800℃ |
Common temperature |
400-650℃ |
heating method | Far infrared electric heating quartz tube network with up and down heating |
Electric power | 60-180Kw/380V |
Temperature control point | 4-8 |
Temperature control method | PID automatic temperature control system, touch screen control interface 485 communication, automatic constant temperature, Temperature adjustable, over temperature alarm and other superior performance. |
Temperature control point accuracy |
±1℃ |
Feeding method | Automatic Furnace feeder automatic feeding |
Exhaust method |
Furnace power exhaust |
Furnace structure |
Modular assembly type, 2-3 meters / section |
