SCR Controlled 523 622 Ternary Positive Air Roller New Energy Kiln

1 Set
MOQ
Negotiable
Price
SCR Controlled 523 622 Ternary Positive Air Roller New Energy Kiln
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber Size: 40500mm(L)×1500mm(W)×230mm(H)
Power: 800KW/380V
Operating Temperature: 950℃
Temperature Uniformity: ± 5 ℃ (constant Temperature Zone)
Heating Temperature Zone: 23 Groups, 46 Points, Up And Down Temperature Control
Heating Element: Equal Diameter Silicon Carbide Rod
Highlight:

Roller New Energy Kiln

,

SCR Controlled New Energy Kiln
Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 Set/Sets per Month
Product Description

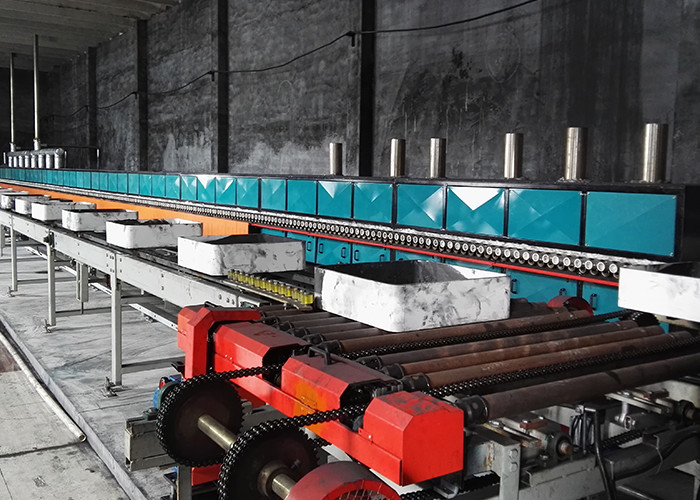

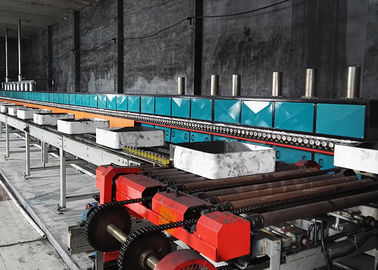

SCR Controlled 523, 622 And Other Ternary Positive Air Roller Kiln



1, Product Overview

 Sintering of ternary positive electrode powder materials such as 523 and 622.

2, Parameter attribute table

The main technical parameters
Chamber size

40500mm(L)×1500mm(W)×230mm(H)
Power

800KW/380V
Operating temperature

950℃
Temperature uniformity ± 5 ℃ (constant temperature zone)
Heating temperature zone 23 groups, 46 points, up and down temperature control
Heating element Equal diameter silicon carbon rod
Control method SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring
Conveying method Frequency conversion motor + reducer + helical gear + roller bar
Chamber atmosphere Air + oxygen
Annual output

680 tons



SCR Controlled 523 622 Ternary Positive Air Roller New Energy Kiln 0

If you have any special sintering process, please contact us, we will customize it for you!
