Product Details:
|
Starting Power: | 2.30-270Kw/380V | Temperature Control Precision: | ±1℃ |
---|---|---|---|
Furnace Length: | 10-32m | Transfer Method: | 304 / 321 Stainless Steel Mesh Belt, Frequency Conversion Speed Regulation |
Maximum Use Temperature: | 750℃ | Mesh Belt Width: | 300-4000mm |
Furnace Structure: | Modular; On-site Assembly | Control Mode: | PID Intelligent Control System, Multi-point Control |
High Light: | 380V Electric Industrial Kiln,Kiln For Annealing Glass,Mesh Belt Electric Industrial Kiln |

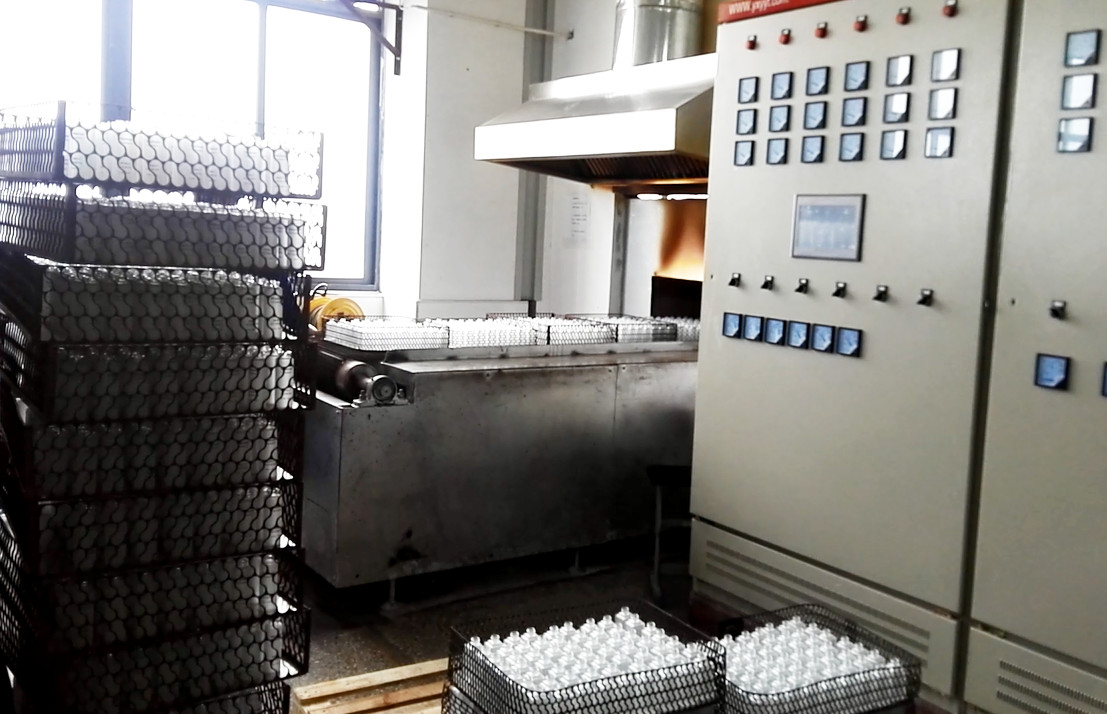

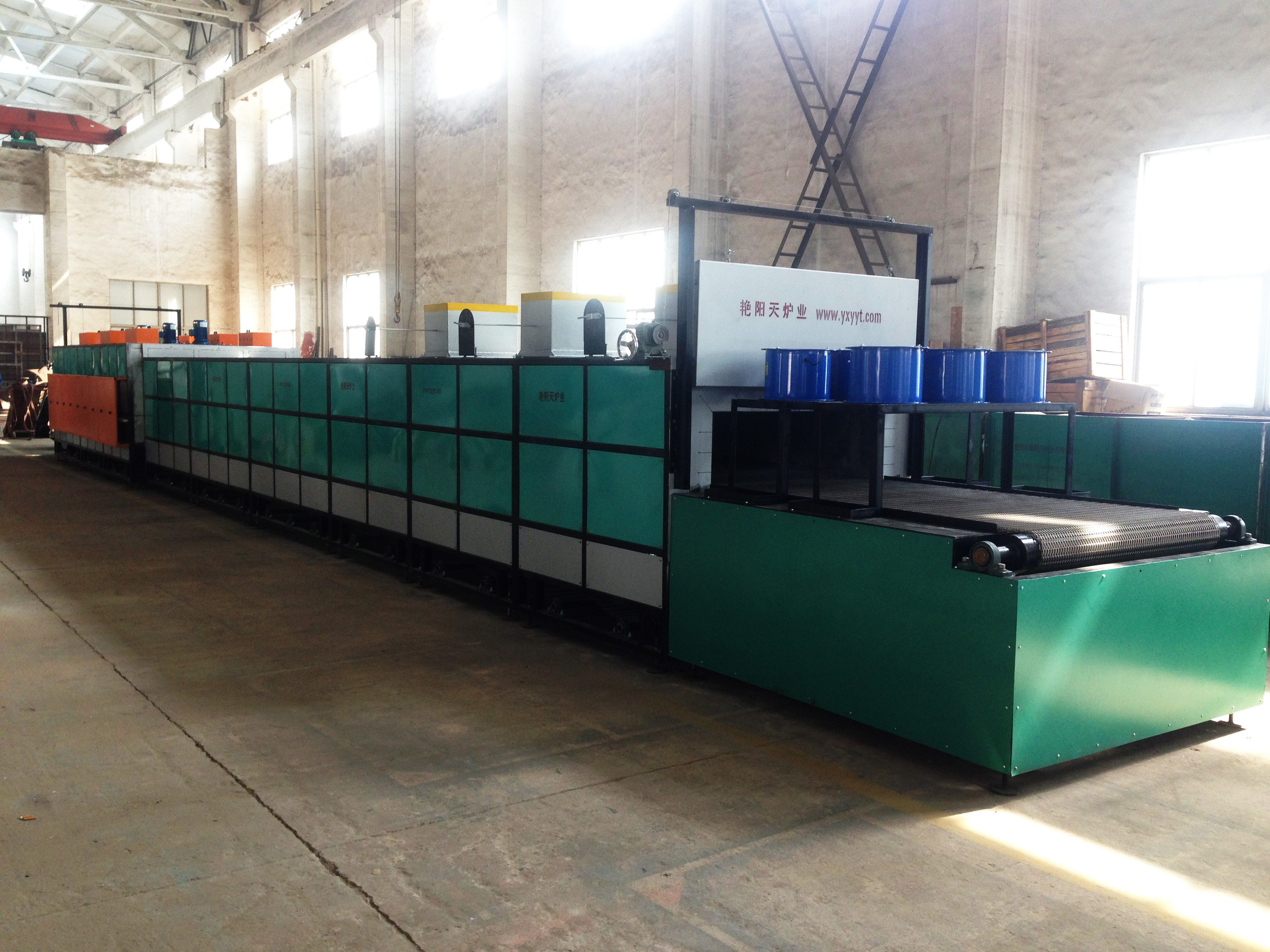

Glass Furnace Design Mesh Belt Electric Heating Glass Annealing Furnace
Mesh Belt Type Electric Glass Decorating ( Annealing ) Furnace,Suitable for mass production
The main technical parameters | |
Furnace length |
10-32m |
Starting power |
30-270Kw/380V |
Temperature control precision |
±1℃ |
Maximum use temperature |
750℃ |
Mesh belt width |
300-4000mm |
Hot air circulation | Mesh belt width ≥1.2m can consider hot air circulation |
Control mode | PID intelligent control system, multi-point control |
Furnace structure |
Modular; on-site assembly |
Transfer method | 304 / 321 stainless steel mesh belt, frequency conversion speed regulation |
The production process is that the product is placed on the mesh belt, driven by the mesh belt, and heated from the feed end into the furnace through the furnace opening to form, then gradually cooled by the cooling chamber, and then collected by the discharge end to complete the entire heat treatment process.
Please contact us for details, we will tailor-made for you!
