Lifting Type High Temperature Laboratory Muffle Furnace

Lifting Type High Temperature Laboratory Muffle Furnace
Lifting Type High Temperature Laboratory Muffle Furnace Lifting Type High Temperature Laboratory Muffle Furnace

Large Image :  Lifting Type High Temperature Laboratory Muffle Furnace

Product Details:
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Model Number: Non-standard customized equipment
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 5 Set/Sets per Month

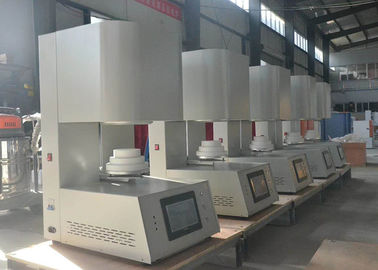

Lifting Type High Temperature Laboratory Muffle Furnace

Description
Voltage(V): 380V Operating Temperature: 1000-1600℃
Brand: Yan Yang Tian Temperature Control Accuracy: ±1ºC
High Light:

High Temperature Laboratory Muffle Furnace

,

Lifting Laboratory Muffle Furnace



High Temperature Lifting Furnace Lifting Type Experimental Electric Furnace



1 , Main feature
  1. Operating temperature: 1000-1600 ℃
  2. Chamber material: according to the temperature, the corresponding temperature-resistant refractory insulation material is used
  3. Using the intelligent digital display programmable temperature control table, it can compile multi-segment rising, keeping and cooling curves, automatic heating, heat preservation, cooling and over-temperature protection. The program will automatically stop at the end of the operation, no need to be on duty.
  4. The heating element adopts electric heating alloy wire, silicon carbon rod and silicon molybdenum rod respectively according to different temperature
  5. According to the need, the furnace can be flushed with: nitrogen, argon, and other protective gases
2 , Commonly used models are as follows



Chamber working size (mm) Voltage(V) Power(KW) Maximum operating temperature(℃) Control method

Temperature control accuracy

(℃)

200x200x200 380 10 1000-1600 PID ±1
300x300x300 380 16 1000-1600 PID ±1
400x400x400 380 22 1000-1600 PID ±1
1200x600x600 380 120 1000-1600 PID ±1
1200x800x800 380 130 1000-1600 PID ±1

Welcome to consult, other specifications can be customized.

3 ,  Product Usage

Uses: used for thermal testing of laboratories in universities and research institutes

The high-temperature lifting type electric furnace has a wide range of applications. It is suitable for chemical analysis and physical measurement of industrial and mining enterprises, scientific research units, and college laboratories. It has been applied to the research of battery materials, electronic ceramics, magnetic materials, nonferrous metals, chemical raw materials and other products. And small batch production.
Lifting Type High Temperature Laboratory Muffle Furnace 0

4. FAQ



1. Are you a trader or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What does the product packaging look like?
Export packaging or according to customer requirements


5 , Package



Delivery period:
Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according the customer's requirement
