Product Details:
|
| Chamber Size: | 35500mm(L)×910mm(W)×350mm(H) | Power: | 500KW/380V |
|---|---|---|---|
| Operating Temperature: | 1250℃ | Temperature Uniformity: | ± 5 ℃ (constant Temperature Zone) |
| Heating Temperature Zone: | 22 Groups, 44 Points, Temperature Control Up And Down | Heating Element: | Equal Diameter Silicon Carbon Rod |
| NAME: | Push Plate Furnace | Brand: | Yan Yang Tian |
| High Light: | Graphite Anode Continuous Belt Furnace,Atmosphere Protection Continuous Belt Furnace |
||

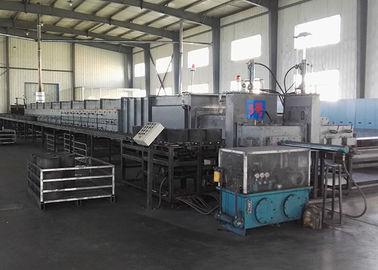

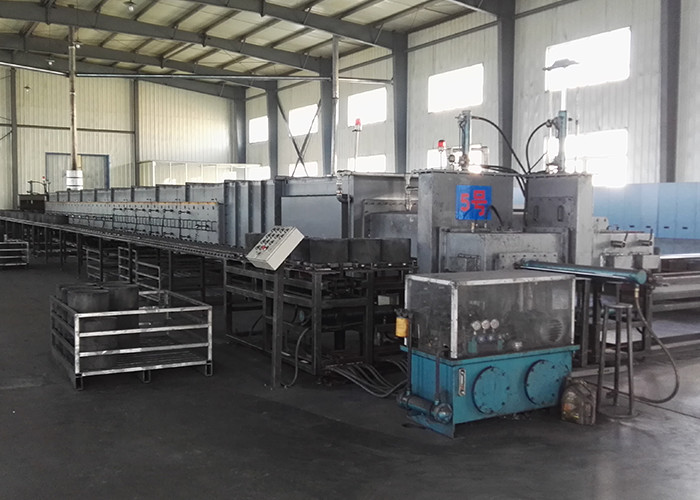

1250 ℃ Atmosphere Protection Graphite Anode Push Plate Kiln
| The main technical parameters | |
| Chamber size | 35500mm(L)×910mm(W)×350mm(H) |
| Power | 500Kw/380V |
| Operating temperature | 1250℃ |
| Temperature uniformity | ± 5 ℃ (constant temperature zone) |
| Heating temperature zone | 22 groups, 44 points, temperature control up and down |
| Heating element | Equal diameter silicon carbon rod |
| Sealing method | Front and rear double gates + replacement chamber seal |
| Control method | SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring |
| Product into kiln mode | Fully automatic hydraulic propulsion circulation system |
| Chamber atmosphere | Nitrogen (99.999%) |
| Annual output | 660 tons |
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What does the product package look like?
Export package or according to customer requirements.
If you have any special sintering process, please contact us, we will customize it for you!
