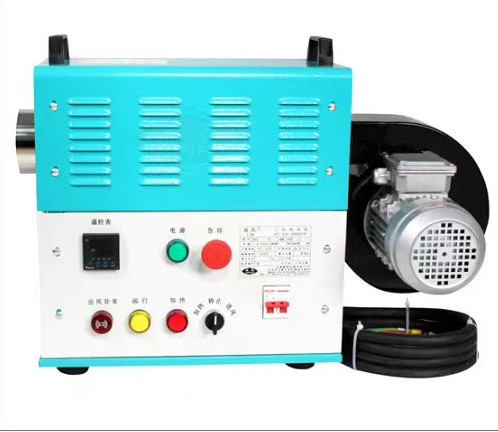

Industrial Hot Air Blower Heater Drying Process Efficient Heating Capability
The industrial hot air blower is an indispensable tool in industrial operations, offering reliable and efficient heating solutions for a variety of applications.
| Model | HAG-HP3A | HAG-HP5/7.5A | HAG-HP10/15A | HAG-HP20/30A | HAG-HP40/60A | |||||
| Product specifications | P1220-3C-075Y | P3380-5C-1.1Y | P3380-7.5C-2.2Y | P3380-10C-3Y | P3380-15C-4Y | P3380-20C-5.5Y | P3380-30C-7.5Y | P3380-40C-12.5Y | ||
| Power system | 2/220V±10% | 3/380V±10% | ||||||||
| Heater power | 3~5KW | 5KW | 7.5KW | 10KW | 15KW | 20KW | 30KW | 40-60KW | ||
| Outlet temperature | Normal temperature~350°C | |||||||||
| Temperature control method | PID control (SSR drive) | |||||||||
| Air outlet caliber | Φ63mm | Φ76mm | Φ76mm | Φ89mm | Φ89mm | Φ102mm | Φ102mm | Φ133mm | ||
| Forced draft fan | Power | 0.75W | 1.1KW | 2.2KW | 3KW | 4KW | 5.5KW | 7.5KW | 12.5KW | |
| Maximum air volume(50Hz) | 145m3/h | 180m3/h | 210m3/h | 315m3/h | 350m3/h | 430m3/h | 520m3/h | 1050m3/h | ||
| Maximum wind pressure(50Hz) | 12KPa | 21KPa | 27KPa | 27KPa | 31KPa | 45KPa | 52KPa | 56KPa | ||
| Inlet diameter | Φ51mm | Φ51mm | Φ63mm | Φ63mm | Φ63mm | Φ76mm | Φ76mm | Φ110mm | ||
| Air volume adjustment method | Manual adjustment (frequency converter can be added) | |||||||||
| Air inlet temperature range | Normal temperature | |||||||||
| Noise (at a maximum air volume of 50Hz) | 58dB | 60dB | 63dB | 65dB | 68dB | 76dB | 76dB | 80dB | ||
| Total cable | 3 corex4m2x3m | 5 corex2.5m2x3m | 5 corex2.5m2x3m | 5corex4m2x3m | 5corex6m2x3m | 5corex10m2x3m | 5 corex16m2x3m | 5corex25m2x3m | ||
| Installation and fixing method | Wheel (optional mounting hole or L angle mounting strip) | |||||||||
| weight | 30 kg | 35kg | 55kg | 65kg | 70kg | 150kg | 175kg | 260kg | ||
| Working environment | Ambient temperature: 0 ~ 40 ° C relative humidity: below RH80% (frost is not allowed) | |||||||||
|
Note: 1. The maximum allowable heating temperature of the heater when the maximum temperature is the minimum air volume. The temperature measurement is subject to the air outlet. The material is stainless steel 304. 2. The control mode, air outlet size and air inlet size can be customized according to the demand, and shall be noted when ordering. 3. The product adopts intelligent control mode, the air volume and temperature can be controlled, and the temperature control accuracy is ± 1 ° C. 4. The power supply system includes: single-phase 110V, 200V, 220V; three-phase 220V, 380V, 440V, which should be noted when ordering. |
||||||||||
It is widely used in electronics, food, pharmaceutical, printing, packaging, cleaning, heat treatment and other industries.
1. Efficient Heating Capability
Hot air blowers are renowned for their rapid and efficient heating capability. With powerful heating elements and precise temperature control systems, hot air blowers can quickly heat the air to the desired temperature, providing a warm and comfortable environment for the workplace. Whether in cold winter days or humid weather, hot air blowers can offer warmth and comfort.
2. Strong Ventilation Capability
In addition to heating functions, hot air blowers possess excellent ventilation capability. Through efficient fan systems and well-designed air outlets, hot air blowers can circulate air quickly, keeping the air fresh and improving the air quality in the workplace. Fresh air circulation not only helps enhance work efficiency but also boosts employee comfort and health levels.
3. Energy Efficiency and Environmental Friendliness
Modern hot air blowers are designed with a focus on energy efficiency and environmental friendliness. With smart control systems and efficient heating elements, hot air blowers can achieve precise temperature regulation to avoid energy waste. Energy efficiency not only helps reduce energy expenses but also aids in minimizing environmental impact, aligning with the principles of sustainability.
4. Versatile Applications
The performance advantages of hot air blowers make them widely applicable in industrial production, commercial settings, warehouse facilities, and various other fields. Whether it's heating, drying, ventilation, or air circulation, hot air blowers can handle various tasks to meet the needs of different environments. Their flexibility and multifunctionality make them essential assistants in modern workplaces.
In conclusion, the performance advantages of hot air blowers lie in their efficient heating, strong ventilation, energy efficiency, environmental friendliness, and versatile applications. Choosing a high-performance hot air blower can not only enhance work efficiency and improve the working environment but also bring more convenience and comfort to your production and life.
