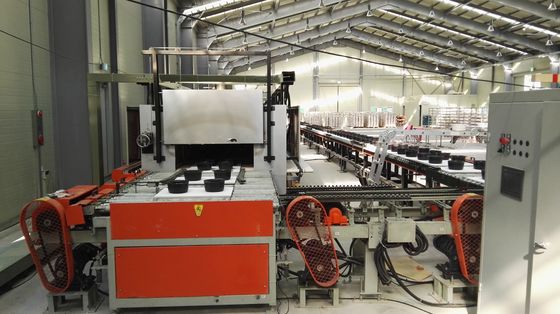

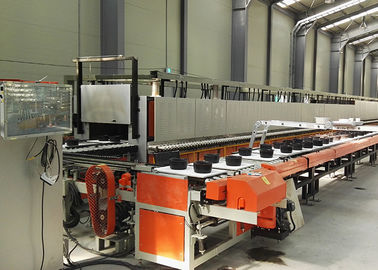

Daily Ceramic Firing Decorating Electric Roller Type Furnace With Intelligent Temperature Control
Daily ceramic firing (Decorating) electric roller furnace
| The main technical parameters | |
| Furnace length |
32-48m |
| Chamber section size | 600-1200mm wide; 200-350mm high |
| Heating method | High-temperature electric heating alloy wire + silicon carbon rod (selected according to different temperatures) |
| Starting power |
90-270KW/380V |
| Maximum use temperature |
1350℃ |
| Common temperature |
1000-1300℃ |
| Control method | PID intelligent temperature control system, zone multipoint control, touch screen control section, with automatic constant temperature, temperature adjustable over-temperature alarm and other superior performance. |
| Transfer method | Helical gear transmission, variable frequency speed regulation |
| Roller material | Ø50mm high temperature ceramic roller + silicon carbide roller (selected according to different temperatures) |
| Furnace structure | Modular assembly |
| Grouped equipment | Full-automatic outer-circulation slewing mechanism |
