High Temperature Continuous Industrial Ceramic Furnace

1 Set
MOQ
Negotiable
Price
High Temperature Continuous Industrial Ceramic Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber Length: 9-15m
Common Temperature: 1400-1600℃
Temperature Uniformity: ± 5 ℃ (constant Temperature Area)
Design Maximum Operating Temperature: 1700℃
Way Of Entering Plate: Single Push Plate, Double Push Plate
Supporting Push Plate Conventional Size: 250mm×250mm；320mm×320mm, Etc.
Highlight:

Continuous Industrial Ceramic Furnace

,

High Temperature Industrial Ceramic Furnace
Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Certification: CE
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 5 Set/Sets per Month
Product Description

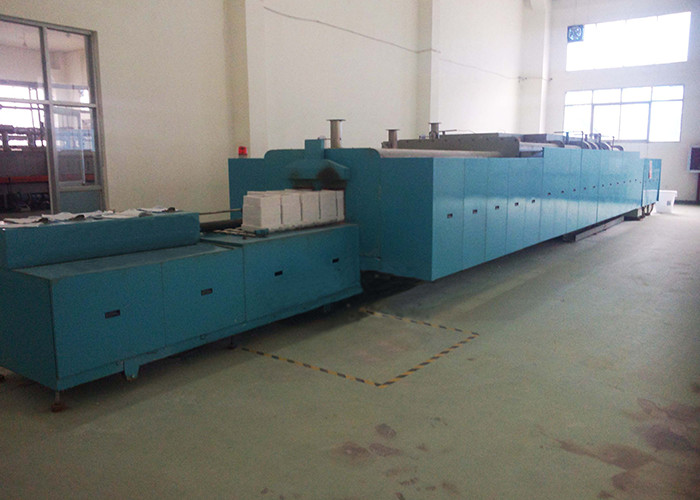

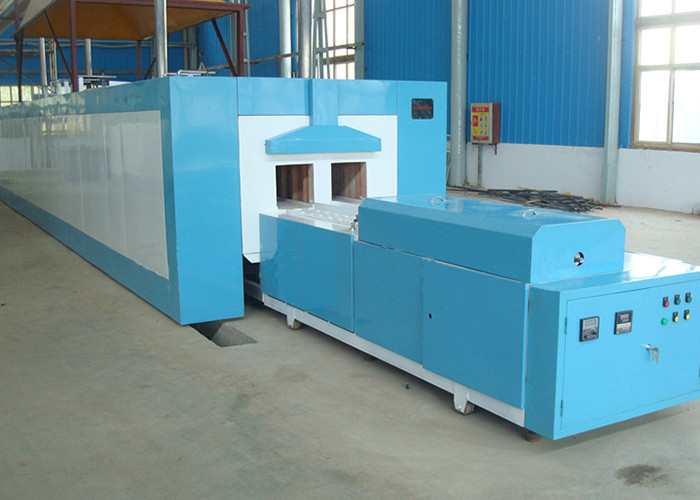

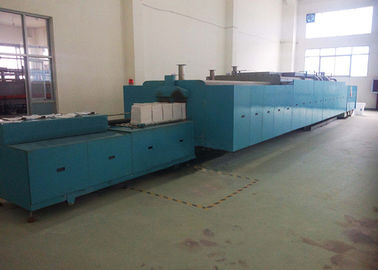

High - Temperature Electric Heating Plate Furnace For Firing Electronic Ceramics



1, Product Overview



The company produces electronic ceramic firing high-temperature electric heating plate furnace, which can be customized.



2, Parameter attribute table



The main technical parameters
Chamber length

9-15m
Common temperature

1400-1600℃
Temperature uniformity ± 5 ℃ (constant temperature area)
Maximum operating temperature

1700℃
Product into the furnace mode Single push plate, double push plate
Supporting push plate conventional size 250mm × 250mm; 320mm × 320mm, etc.
Heating temperature zone Zone 5-8, 10-16 temperature control points, push the upper and lower temperature control
Control mode SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring
Furnace structure Modular assembly
Propulsion mode Fully automatic hydraulic propulsion external circulation system
Electric heating element Silicon molybdenum rod



3, Product Usage

It is mainly used for high-temperature sintering of various structural ceramic products such as 95 porcelain pieces, 99 porcelain pieces, 5G porcelain pieces, zirconia products, corundum porcelain pieces, etc., which is suitable for continuous production.

Please contact us for specific details, we will tailor-made for you!



4, FAQ



Q: Are you trading or manufacturer ?
A: We are a company, and we have our own factory
Q: How long is your delivery time?
A: Negotiable
