Heat Treatment Gas Push Plate 24h Industrial Ceramic Furnace

1 Set
MOQ
Negotiable
Price
Heat Treatment Gas Push Plate 24h Industrial Ceramic Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber Length: 9-15m
Common Temperature: 1400-1600℃
Temperature Uniformity: ± 5 ℃ (constant Temperature Area)
Design Maximum Operating Temperature: 1700℃
Way Of Entering Plate: Single Push Plate, Double Push Plate
Supporting Push Plate Conventional Size: 250mm×250mm；320mm×320mm, Etc.
Highlight:

24h Industrial Ceramic Furnace

,

Gas Push Industrial Ceramic Furnace
Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Certification: CE
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 Set/Sets per Month
Product Description



Electronic Ceramic Firing High - Temperature Gas Push Plate Furnace



1, Product Overview



Heat Treatment Gas Push Plate 24h Industrial Ceramic Furnace 0



2, Parameter attribute table



The main technical parameters
Chamber length

9-15m
Common temperature

1400-1600℃
Temperature uniformity ± 5 ℃ (constant temperature area)
Design maximum operating temperature

1700℃
Production into the furnace mode Single push plate, double push plate
Supporting push plate conventional size 250mm × 250mm; 320mm × 320mm, etc.
Heating temperature zone Zone 5-8, 10-16 temperature control points, push the upper and lower temperature control
Control mode SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring
Furnace structure Modular assembly
Propulsion mode Fully automatic hydraulic propulsion external circulation system
Electric heating element Silicon molybdenum rod



3, Product application

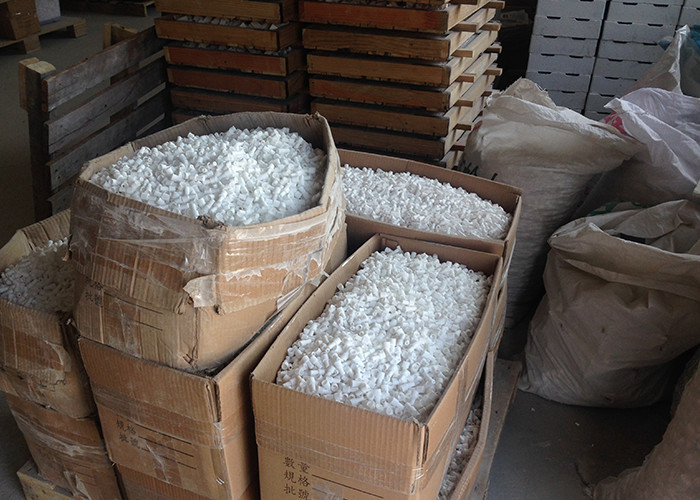

It is mainly used for high-temperature sintering of various structural ceramic products such as 95 porcelain pieces, 99 porcelain pieces, 5G porcelain pieces, zirconia products, corundum porcelain pieces, etc., which is suitable for continuous production.

Heat Treatment Gas Push Plate 24h Industrial Ceramic Furnace 1

Please contact us for specific details, we will tailor-made for you!
