Medium Pressure Industrial Drying Equipment

1 Set
MOQ
Negotiable
Price
Medium Pressure Industrial Drying Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Outlet Temperature: Normal Temperature~350°C
Temperature Control Method: PID Control (SSR Drive)
Air Inlet Temperature Range: Normal Temperature ~ 200°C
Air Volume Adjustment Method: Manual Adjustment (frequency Converter Can Be Added)
Installation And Fixing Method: Wheel (optional Mounting Hole Or L Angle Mounting Strip)
Brand: Yan Yang Tian
Highlight:

Medium Pressure Industrial Drying Equipment

,

Medium Pressure Drying Equipment

,

200C Industrial Drying Equipment

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 5 Set/Sets per Month
Product Description

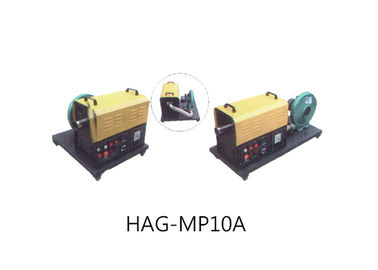

Medium Pressure Hot Air Blower For Internal Drying In Remote Pipe



1, Product Overview


Medium pressure hot air blower widely used in electronic, food, pharmaceutical and other industries



2, Parameter and specification



Model HAG-MP3-5A HAG-MP5-7.5A HAG-MP10-15A HAG-MP20-3A HAG-MP40-60A
Product specifications P1220-3C-018Y P3380-5C-025Y P3380-15C-075Y P3380-20C-1.5Y P3380-40C-3Y P3380-7.5C-037Y P3380-10C-055Y P3380-30C-2.2Y
Power system 2/220V±10% 3/380V±10%
Heater power 3-5KW 5KW 7.5KW 10KW 20KW 15KW 30KW 40~60KW
Outlet temperature Normal temperature~350°C
Temperature control method PID control (SSR drive)
Air outlet caliber Middle133mm Middle89mm Middle133mm0 Middle133mm Middle133mm Middle219mm Middle159mm Middle219mm
Forced draft fan Power 180W 250W 370W 550W 750W 1500W 3000W 2200W
Maximum air volume(50Hz) 408m³/h 450/h 690/h 960/h 1170/h 1530/h 1560/h 1620/h
Maximum wind pressure(50Hz) 1100Pa 1200Pa 1880Pa 1980Pa 2140Pa 2500Pa 2400Pa 2650Pa
Inlet diameter Φ76mm Φ76mm Φ76mm Φ89mm Φ89mm Φ102mm Φ102mm Φ133mm
Air volume adjustment method Manual adjustment (frequency converter can be added)
Air inlet temperature range Normal temperature ~ 200C
Noise (at a maximum air volume of 50Hz) 66dB 77dB 68dB 76dB 79dB 83dB 84dB 89dB
Total cable 3corex4m2x3m 5corex2.5m2x3m 5corex2.5m2xm 5corex4m2x3m 5corex6m2x3m 5core*10m2x3m 5corex16m2x3m 5core x25m2x3m
Installation and fixing method Wheel (optional mounting hole or l angle mounting strip)
Weight 32kg 35kg 40kg 50kg 55kg 105k 130kg 145kg
Working environment Ambient temperature: 0 ~ 40 ° C relative humidity: below RH80% (frost is not allowed)

Note:

1. When the maximum temperature is the minimum air volume, the maximum allowable heating temperature of the heater. The temperature measurement shall be subject to the air outlet. The material is stainless steel 304.

2. The control mode, air outlet size and air inlet size can be customized according to the demand, and shall be noted when ordering.

3. The product adopts intelligent control mode, the air volume and temperature can be controlled, and the temperature control accuracy is ±1 ° C.

4. Power supply system: single-phase 110V, 200V, 220V. Three-phase 220V, 380V, 440V, to be noted when ordering.



3, Product application

It is mainly used for drying the inner part of the remote tube, the special-shaped container, the mold work piece, the circuit board, the glass plate and the product cleaning. It is widely used in electronics, food, pharmaceutical, printing, packaging, cleaning, heat treatment and other industries.
If there are special requirements for non-standard customized equipment, please contact us, we will customize it for you!

4. FAQ



1. Are you a trader or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What does the product packaging look like?
Export packaging or according to customer requirements
