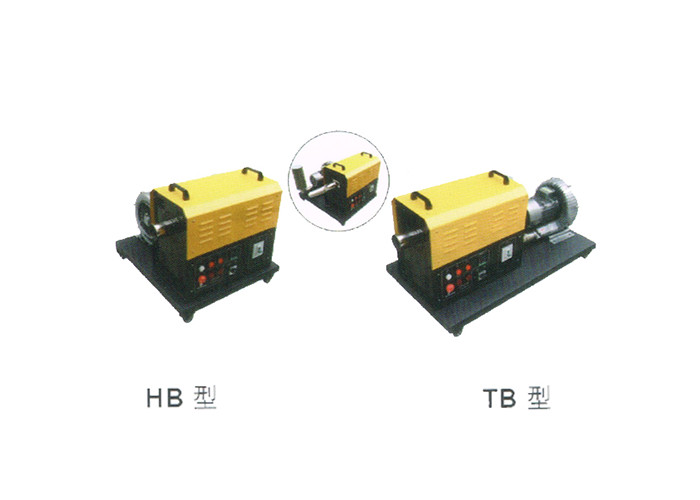

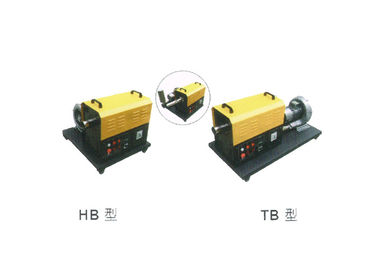

High Pressure Hot Air Machine For Product Cleaning And Rapid Drying
The high-pressure hot air blower has a very broad application prospect in various industries such as electronics, food, pharmaceutical, printing, packaging, cleaning, heat treatment, etc. The hot air fan is the first choice for modern industrial heat source upgrade and replacement, and is the best hot air source configuration for automatic machinery such as hot air conveyor furnace, drying furnace, oven, packaging machine and so on.
| Model | HAG-HP3A | HAG-HP5/7.5A | HAG-HP10/15A | HAG-HP20/30A | HAG-HP40/60A | |||||
| Product specifications | P1220-3C-075Y | P3380-5C-1.1Y | P3380-7.5C-2.2Y | P3380-10C-3Y | P3380-15C-4Y | P3380-20C-5.5Y | P3380-30C-7.5Y | P3380-40C-12.5Y | ||
| Power system | 2/220V±10% | 3/380V±10% | ||||||||
| Heater power | 3~5KW | 5KW | 7.5KW | 10KW | 15KW | 20KW | 30KW | 40-60KW | ||
| Outlet temperature | Normal temperature~350°C | |||||||||
| Temperature control method | PID control (SSR drive) | |||||||||
| Air outlet caliber | Φ63mm | Φ76mm | Φ76mm | Φ89mm | Φ89mm | Φ102mm | Φ102mm | Φ133mm | ||
| Forced draft fan | Power | 0.75W | 1.1KW | 2.2KW | 3KW | 4KW | 5.5KW | 7.5KW | 12.5KW | |
| Maximum air volume(50Hz) | 145m3/h | 180m3/h | 210m3/h | 315m3/h | 350m3/h | 430m3/h | 520m3/h | 1050m3/h | ||
| Maximum wind pressure(50Hz) | 12KPa | 21KPa | 27KPa | 27KPa | 31KPa | 45KPa | 52KPa | 56KPa | ||
| Inlet diameter | Φ51mm | Φ51mm | Φ63mm | Φ63mm | Φ63mm | Φ76mm | Φ76mm | Φ110mm | ||
| Air volume adjustment method | Manual adjustment (frequency converter can be added) | |||||||||
| Air inlet temperature range | Normal temperature | |||||||||
| Noise (at a maximum air volume of 50Hz) | 58dB | 60dB | 63dB | 65dB | 68dB | 76dB | 76dB | 80dB | ||
| Total cable | 3 corex4m2x3m | 5 corex2.5m2x3m | 5 corex2.5m2x3m | 5corex4m2x3m | 5corex6m2x3m | 5corex10m2x3m | 5 corex16m2x3m | 5corex25m2x3m | ||
| Installation and fixing method | Wheel (optional mounting hole or L angle mounting strip) | |||||||||
| weight | 30 kg | 35kg | 55kg | 65kg | 70kg | 150kg | 175kg | 260kg | ||
| Working environment | Ambient temperature: 0 ~ 40 ° C relative humidity: below RH80% (frost is not allowed) | |||||||||
|
Note: 1. The maximum allowable heating temperature of the heater when the maximum temperature is the minimum air volume. The temperature measurement is subject to the air outlet. The material is stainless steel 304. 2. The control mode, air outlet size and air inlet size can be customized according to the demand, and shall be noted when ordering. 3. The product adopts intelligent control mode, the air volume and temperature can be controlled, and the temperature control accuracy is ± 1 ° C. 4. The power supply system includes: single-phase 110V, 200V, 220V; three-phase 220V, 380V, 440V, which should be noted when ordering. |
||||||||||
It is widely used in electronics, food, pharmaceutical, printing, packaging, cleaning, heat treatment and other industries.
