800 - 2500mm Width 1000℃ Crystal Glass Production Line

1 Set
MOQ
Negotiable
Price
800 - 2500mm Width 1000℃ Crystal Glass Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Common Temperature: ≤900℃
Maximum Operating Temperature: 1000℃
Furnace Length: 26-60m
Furnace Structure: Modular; On-site Assembly
Chamber Width: 800-2500mm
Roller Diameter: Ø40-60mm
Transfer Method: Bevel Gear Transmission
Daily Output (24h): 100-1500 Square Meters / Day
Highlight:

1000℃ Crystal Glass Production Line

,

2500mm Crystal Glass Production Line

,

2500mm Crystal Glass Production
Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Certification: CE
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 5 Set/Sets per Month
Product Description

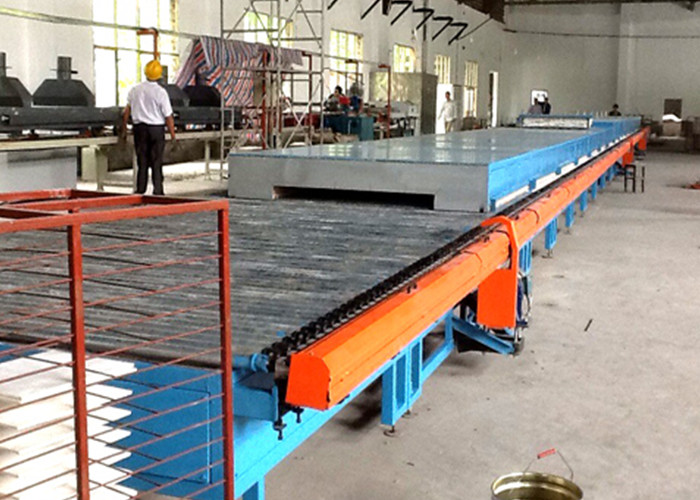

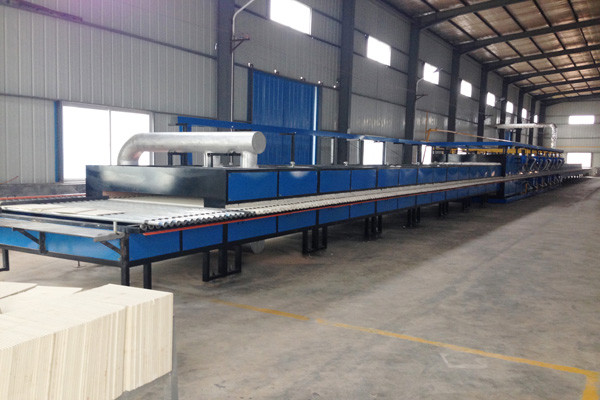

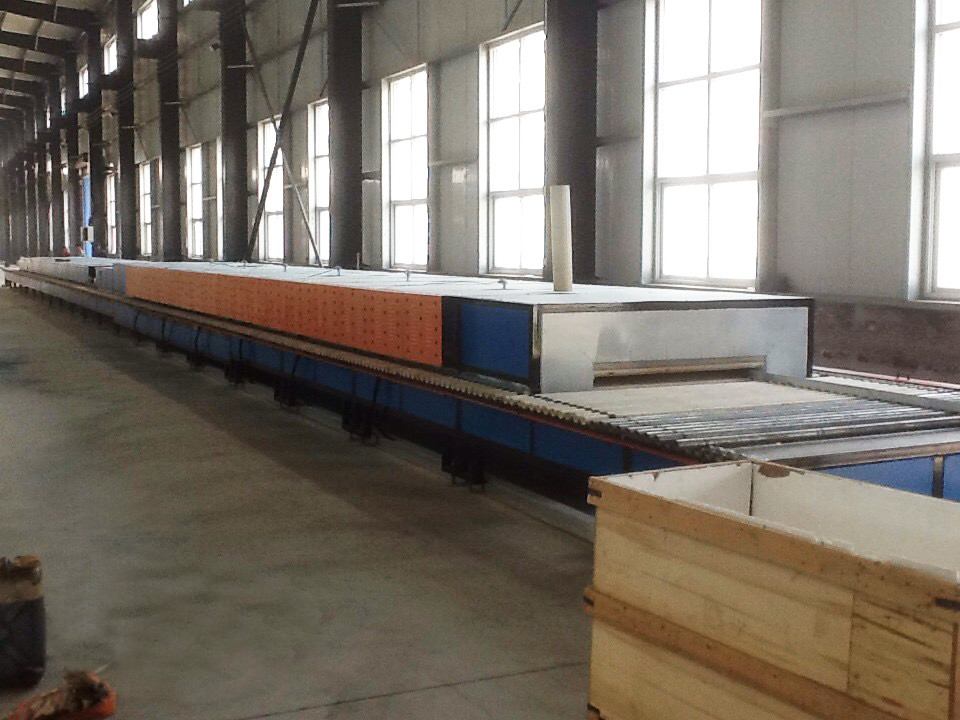

Furnace Width Of Glass Furnace Crystal Glass Production Line 800 - 2500mm



1, Product Overview



The company provides crystal glass mosaic production line

1. Control mode: PID intelligent control system, multipoint control
2. Furnace structure: modular; on-site assembly



2, Mosaic Furnace Parameter



The main technical parameters
Furnace length

26-60m
Roller diameter

Ø40-60mm
Chamber width

800-2500mm
Temperature control precision

±1℃
Maximum operating temperature

1000℃
Transfer method

Bevel gear transmission
Heating mode Electricity, natural gas, liquefied petroleum gas

Common temperature

≤900℃
Daily output (24h) 100-1500 square meters / day
Roller speed Frequency control
Roller material Use stainless steel rollers and high temperature ceramic rollers in different parts of the Furnace as required



3, Product Usage

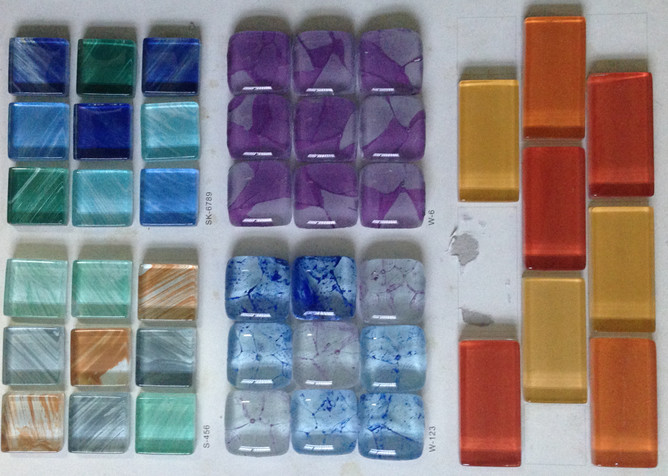

  • Non-standard customized equipment, mainly used for the continuous production of crystal glass mosaics
  • Production line equipment composition: glass cutting machine, printing and drying line, breaking and typesetting machine, edge melting furnace, back film drying line and other equipment.

Our company provides a full set of technology and equipment for crystal mosaic production, please contact us for details, we will tailor it for you!
