Product Details:
|
| Common Temperature: | ≤900℃ | Maximum Use Temperature: | 1000℃ |
|---|---|---|---|
| Furnace Length: | 26-60m | Furnace Structure: | Modular; On-site Assembly |
| Chamber Width: | 800-2500mm | Roller Diameter: | Ø40-60mm |
| Transfer Method: | Bevel Gear Transmission | Daily Output (24h): | 100-1500 Square Meters / Day |
| High Light: | 40mm mosaic making machine,40mm Crystal Glass Tile machine,1000℃ mosaic making machine |
||

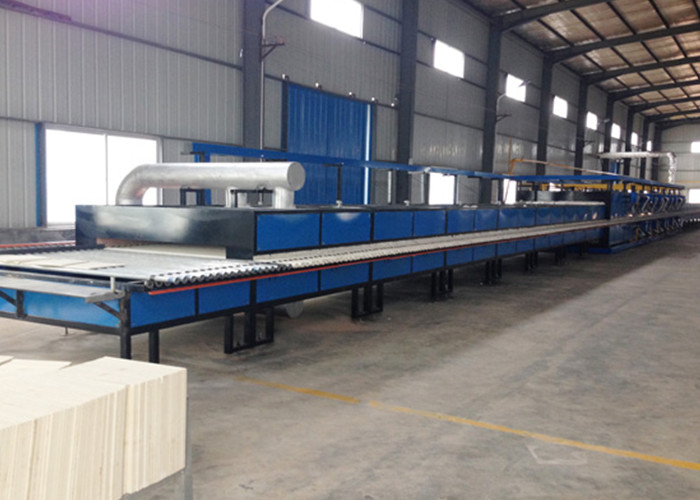

Crystal glass mosaics furnace with bevel gear transmission

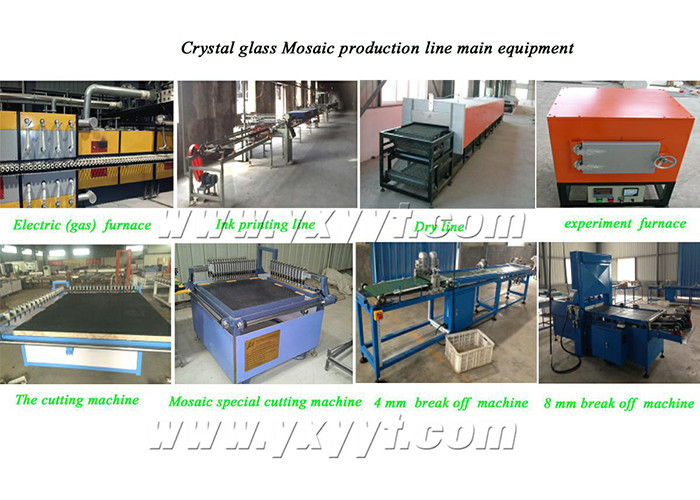

Product description: this furnace is mainly used for producing a 4-10 (mm) crystal mosaic product. The production line mainly consists of a drying furnace, an experimental furnace, a multi-blade cutting table, a breaking machine and a screen process press. The total length of the furnace is 28 to 36 meters, the maximal operating temperature is 800℃. And the monthly production is 5,000 to 20,000 square meters.
Crystal glass mosaic production process
Flat glass ⇒ cutting small pieces ⇒ wash the glass ⇒ Screen print the base color ⇒ first drying ⇒
second print color ⇒ second drying ⇒ cutting glass to mosaic ⇒ Sintering mosaic in the furnace ⇒ stick film ⇒ package
| The main technical parameters | |
| Furnace length |
26-60m |
| Roller diameter |
Ø40-60mm |
| Chamber width |
800-2500mm |
| Temperature control precision |
±1℃ |
| Maximum use temperature |
1000℃ |
| Transfer method |
Bevel gear transmission |
| Heating mode | Electricity, natural gas, liquefied petroleum gas |
|
Common temperature |
≤900℃ |
| Daily output (24h) | 100-1500 square meters / day |
| Roller speed | Frequency control |
| Roller material | Use stainless steel rollers and high temperature ceramic rollers in different parts of the furnace as required |
Our company provides a full set of technology and equipment for crystal mosaic production, please contact us for details, we will tailor it for you!
