Mesh Belt Type Electric Heating Furnace For Glass Products

Mesh Belt Type Electric Heating Furnace For Glass Products
Mesh Belt Type Electric Heating Furnace For Glass Products Mesh Belt Type Electric Heating Furnace For Glass Products Mesh Belt Type Electric Heating Furnace For Glass Products

Large Image :  Mesh Belt Type Electric Heating Furnace For Glass Products

Product Details:
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Certification: CE
Model Number: Non-standard customized equipment
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 5 Set/Sets per Month

Mesh Belt Type Electric Heating Furnace For Glass Products

Description
Minimum Glass Ball Specifications: Φ10mm Daily Minimum Output (24h): Φ16mm/1500Kg Φ20mm/2000Kg Ф25mm/2500Kg
Usual Format: Φ16mm Φ20mm Ф25mm Place Of Origin: Jiangsu,China
Brand: Yan Yang Tian Certificate: CE
Furnace Working Mode: 24h Continuous Work
High Light:

Glass Products Electric Heating Furnace 21m

,

Mesh Belt Type Electric Heating Furnace

Equipment use Glass cover and high boric silicon glassware and other glass products enhanced (semi-finrated)
Maximum temperature 850 ° C
Usual temperature 650-750 ° C
Furnace length 18m-21m
Furnace size Width 400mm-1200mm, height 120mm-300mm (can be customized according to customer)
Running speed 0 ~ 500mm / min (continuously adjustable)
Network bandwidth 400mm-1200mm
Web strip material SUS310S heat resistant stainless steel mesh belt
Control temperature 8 ~ 12pm
Furnace temperature uniformity ± 5 ° C
Strengthening High pressure fan is strong
Furnace structure Module assembly
Heater High temperature alloy resistance wire
Temperature control control system PID intelligent temperature control; 485 communication, touch screen control interface
Features

1. The temperature precision in the furnace is accurate, the homogeneity of the furnace temperature is high, and the product consistency is good.

2, the pneumatic network belt tensioning device equipment operation is stable.

3, all ceramic fiber warming cotton plate structure, rapid temperature rise, energy saving is efficient.

  The above parameters are for reference only, this equipment is non-standard equipment, which is customized according to the actual process requirements of the product.

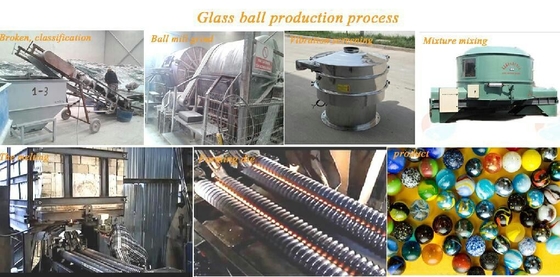

Glass Furnaces Produce Glass Balls , Glass marbles , Glass beads​



1 , Product Overview



The main components of the production line are as follows

  • Glass ball mill:The glass ball mill is a device used for grinding glass, which can grind glass with high efficiency. It has the characteristics of high grinding efficiency, energy saving and environmental protection, and good continuity.
  • Shaker
  • Mixing machine
  • Automatic feeding machine
  • Glass melting furnace (fuel: natural gas, liquefied petroleum gas, coal, coal to gas)
  • Color frit furnace (electricity, gas)
  • Automatic glass shearing machine
  • Glass ball forming mold
2 , Common specifications and output



1 )  Usual format: Φ16mm Φ20mm Ф25mm
2 )  Furnace working mode: 24h continuous work
3 )  Minimum output per day (24h): Φ16mm / 1500Kg Φ20mm / 2000Kg Φ25mm / 2500Kg
4 )  Minimum glass ball size: Φ10mm
Note: If you need equipment, please email or call for detailed communication, we can provide a complete set of production technology

At the same time, we can also provide 40 mesh-Φ8mm glass beads production line and a full set of technology.



3 , Product Usage



Used for recycling of waste glass, producing Ф11-30 (mm) color, single glass marbles and glass balls.



Mesh Belt Type Electric Heating Furnace For Glass Products 0



4, FAQ



1, Are you trading or manufacturer ?
 We are company,and we have our own factory
2,How long is your delivery time?
 Negotiable
Please contact us for details, we will tailor-made for you!



5 , Package
  • Delivery period:
Shipped within 45 days from the date of payment by the buyer or negotiable
  • Packing: Export package or according the customer's requirement
