Product Details:
|
Starting Power: | 2.30-270Kw/380V | Temperature Control Precision: | ±1℃ |
---|---|---|---|
Furnace Length: | 10-32m | Transfer Method: | 304 / 321 Stainless Steel Mesh Belt, Frequency Conversion Speed Regulation |
Furnace Structure: | Modular; On-site Assembly | Maximum Use Temperature: | 750℃ |
Hot Air Circulation: | Mesh Belt Width ≥1.2m Can Consider Hot Air Circulation | Control Mode: | PID Intelligent Control System, Multi-point Control |
Application: | Industrial Heating | Control System: | PID Control System |
Fuel: | Electricity | Heating Element: | Electric |
Material: | Stainless Steel | Name: | Electric Industrial Furnace |
Power: | High | Safety System: | High Temperature Alarm System |
Size: | Customizable | Temperature: | High |
Temperature Range: | 50-1200℃ | Type: | Electric Industrial Furnace |
Voltage: | 220V-440V | Warranty: | 1 Year |
High Light: | Glass Decorating Mesh Belt Furnace,Glass Decorating Electric Furnace,Modular Mesh Belt Furnace |

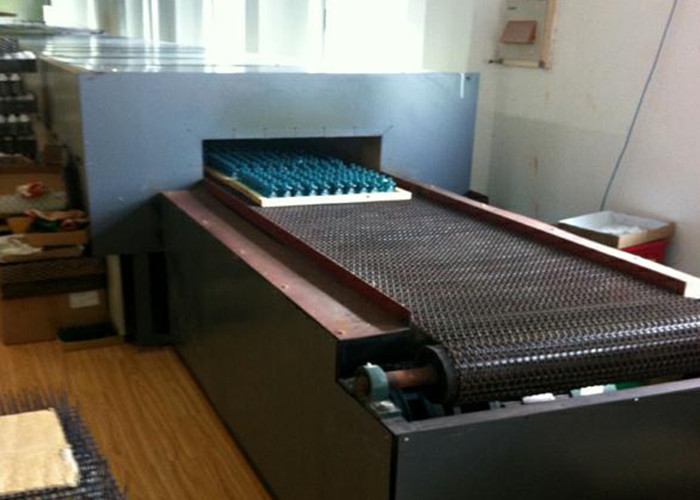

Modular Electric Mesh Belt Furnace For Glass Decorating
Electric Mesh Belt High Temperature Glass Decorating Furnace Mesh Belt Furnace
Mesh Belt Type Electric Glass Decorating ( Annealing ) Furnace,Suitable for mass production
The main technical parameters | |
Furnace length |
10-32m |
Starting power |
30-270Kw/380V |
Temperature control precision |
±1℃ |
Maximum use temperature |
750℃ |
Mesh belt width |
300-4000mm |
Hot air circulation | Mesh belt width ≥1.2m can consider hot air circulation |
Control mode | PID intelligent control system, multi-point control |
Furnace structure |
Modular; on-site assembly |
Transfer method | 304 / 321 stainless steel mesh belt, frequency conversion speed regulation |

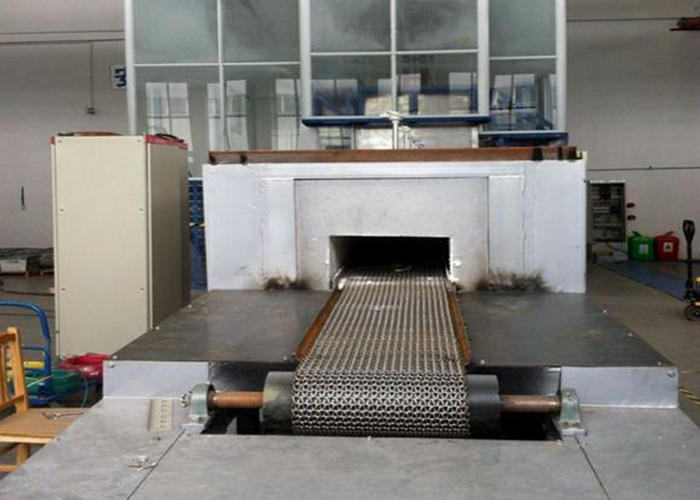

The production process is that the product is placed on the mesh belt, driven by the mesh belt, and heated from the feed end into the furnace through the furnace opening to form, then gradually cooled by the cooling chamber, and then collected by the discharge end to complete the entire heat treatment process.
Please contact us for details, we will tailor-made for you!
