CE Approved 1350℃ Gas Fired Daily Ceramic Tunnel Kiln

1 Set
MOQ
Negotiable
Price
CE Approved 1350℃ Gas Fired Daily Ceramic Tunnel Kiln
Features Gallery Product Description Request A Quote
Features
Specifications
Furnace Length: 36-60m
Electric Power: ≯60KW/380V
Furnace Structure: Modular Assembly
Common Temperature: 1000-1300℃
Maximum Use Temperature: 1350℃
Chamber Section Size: 800-1500mm Wide
Highlight:

Daily Ceramic Tunnel Kiln

,

Gas Fired Ceramic Tunnel Kiln

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Certification: CE
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 Set/Sets per Month
Product Description



Daily - Used Ceramic Fired Gas Tunnel Furnace Capable Of Mass Production



1, Product Overview

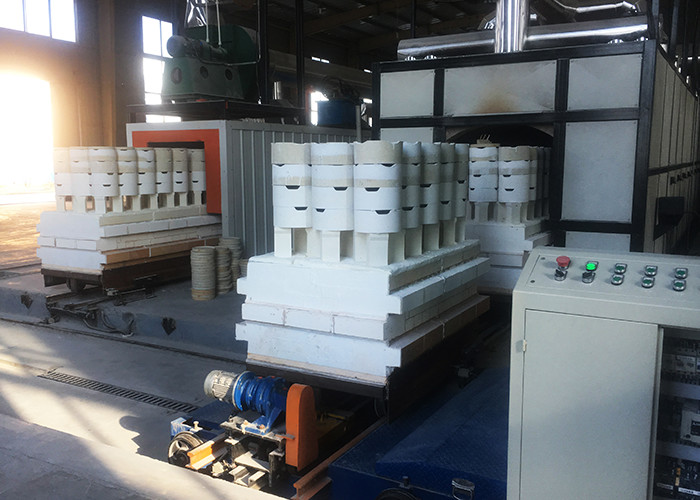

CE Approved 1350℃ Gas Fired Daily Ceramic Tunnel Kiln 0



2, Parameter attribute table



The main technical parameters
Furnace length

36-60m

Chamber section size

800-1500mm wide

Electric power

≯60Kw/380V

Heating mode Natural gas special burner furnace body heating on both sides
Maximum use temperature

1350℃

Common temperature

1000-1300℃

Control mode PID intelligent temperature control system partition multi-point control, touch screen control section, with automatic constant temperature, temperature
Adjustable over temperature alarm and other superior performance.

Furnace car surface mounted product height

1-1.5m

Fuel Natural gas, liquefied petroleum gas, cold gas
Transmission mode Furnace car type, external circulation mechanism
Smoke exhaust mode Utilization of waste heat, smoke exhaust from furnace body
Grouped equipment Full-automatic outer circulation rotary line
Furnace structure Modular assembly
Propulsion mode Furnace head hydraulic propulsion, speed adjustable



3, Product application

Non-standard customized equipment, mainly used for daily high-temperature firing of ceramic tableware, suitable for continuous production of large quantities

Please contact us for specific details, we will tailor-made for you!
