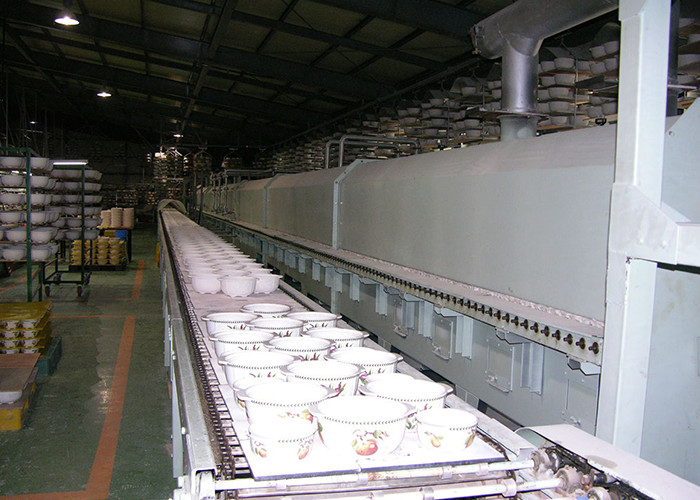

Installation Of Gas Heating Roller Furnace For Daily Ceramic Furnace
This furnace is mainly used for high-temperature firing of ceramic tableware, tea sets and craft ceramics, and other daily-use porcelain and sintering of glaze, pastels, etc. It adopts electric heating, roller bar transmission, PLC computer automatic control to achieve product temperature setting and process adjustable, remote monitoring and other superior performance.
| The main technical parameters | |
| Furnace length |
32-48m |
|
Chamber section size |
Width 600-1200mm; height 200-350mm |
| Gas power |
1.2-3 million kcal |
| Heating mode | Natural gas, LPG |
| Maximum use temperature |
1350℃ |
| Common temperature |
1000-1300℃ |
| Control mode | PID intelligent temperature control system, partition multipoint control, touch screen control section, with automatic constant temperature and temperature Adjustable over temperature alarm and other superior performance. |
|
Furnace structure |
Modular assembly |
| Transfer method | Helical gear transmission, frequency conversion speed regulation |
| Grouped equipment | Full-automatic external circulation rotary mechanism |
| Roller material | Ø50mm high temperature ceramic roller + silicon carbide roller (selected according to different temperature) |
1, Are you trading or manufacturer ?
We are a company, and we have our own factory
2,How long is your delivery time?
Negotiable
Please contact us for specific details, we will tailor-made for you!
Delivery period: Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement
