Product Details:
|
| Chamber Length: | 9-15m | Common Temperature: | 1250-1300℃ |
|---|---|---|---|
| Temperature Uniformity: | ± 5 ℃ (constant Temperature Area) | Design Maximum Operating Temperature: | 1350℃ |
| Way Of Entering Plate: | Single Push Plate, Double Push Plate | Supporting Push Plate Conventional Size: | 250mm×250mm；320mm×320mm, Etc. |
| Brand: | Yan Yang Tian | Product Unit Price: | Negotiable |
| High Light: | Electric Ceramic Tunnel Kiln,Medium Temperature Ceramic Tunnel Kiln |
||

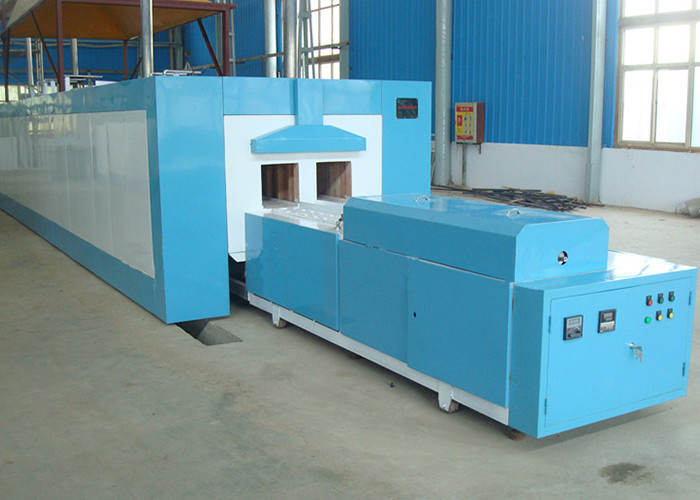

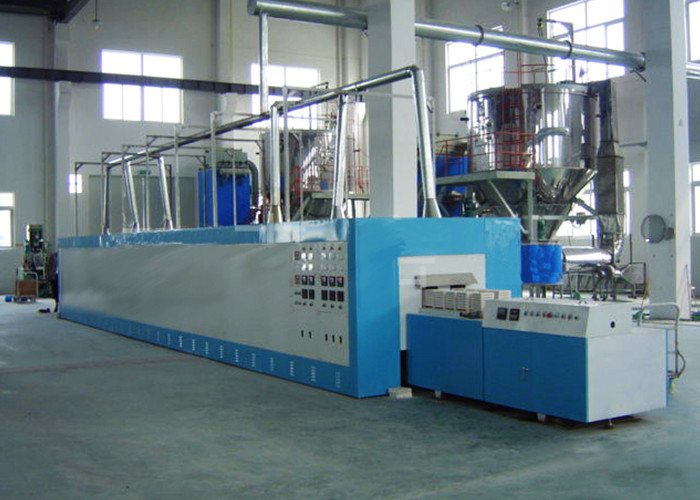

Ceramic Furnace Manufacturer Medium Temperature Electric Push Plate Furnace
If you have a special sintering process, please contact us, we will tailor it for you!
| The main technical parameters | |
| Chamber length |
9-15m |
| Common temperature |
1250-1300℃ |
| Temperature uniformity | ± 5 ℃ (constant temperature area) |
| Maximum operating temperature |
1350℃ |
| Product into furnace mode | Single push plate, double push plate |
| Supporting push plate conventional size | 250mm × 250mm; 320mm × 320mm, etc. |
| Heating temperature zone | Zones 6-9, 10-15 temperature control points, up and down temperature control |
| Control mode | SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring |
| Furnace structure | Modular assembly |
| Furnace atmosphere | Design multi-channel gas inlet and outlet mechanism |
| Propulsion mode | Fully automatic hydraulic propulsion external circulation system |
| Electric heating element | High temperature electric heating alloy wire / silicon carbon rod |
Delivery period:
Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according the customer's requiremen
