Product Details:
|
| Furnace Length: | 36-60m | Electric Power: | ≯60Kw/380V |
|---|---|---|---|
| Furnace Structure: | Modular Assembly | Common Temperature: | 1000-1300℃ |
| Maximum Use Temperature: | 1350℃ | Chamber Section Size: | 800-1500mm Wide |
| High Light: | Gas Fired Industrial Ceramic Furnace,Daily Ceramic Industrial Ceramic Furnace,Daily Ceramic Gas Ceramic Furnace |
||

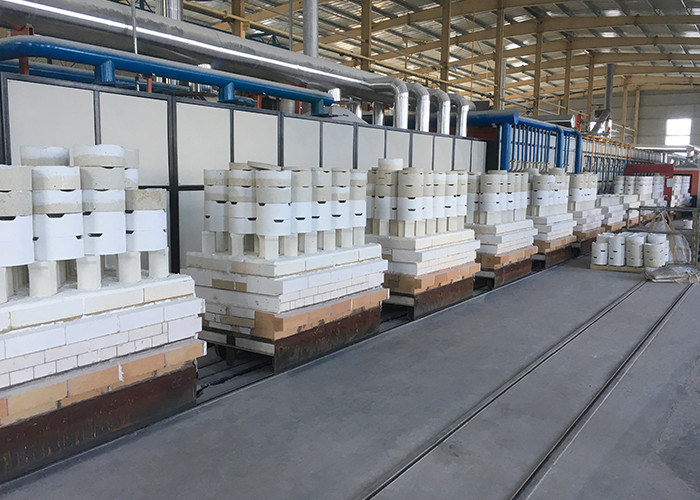

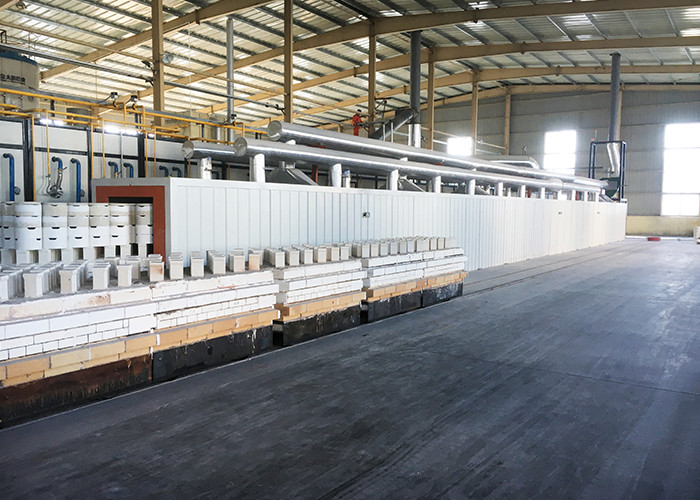

Ceramic Furnace Sales Of Daily - Use Ceramic Fired Gas Tunnel Furnace
Tunnel furnace is a kind of light energy-saving continuous production furnace. The kiln is an assembled metal frame structure, and the masonry is made of high-grade light-weight refractory and thermal insulation materials.
| The main technical parameters | |
| Furnace length |
36-60m |
|
Chamber section size |
800-1500mm wide |
| Electric power |
≯60Kw/380V |
| Heating mode | Natural gas special burner furnace body heating on both sides |
| Maximum use temperature |
1350℃ |
| Common temperature |
1000-1300℃ |
| Control mode | PID intelligent temperature control system partition multi-point control, touch screen control section, with automatic constant temperature, temperature Adjustable over temperature alarm and other superior performance. |
|
Furnace car surface mounted product height |
1-1.5m |
| fuel | Natural gas, liquefied petroleum gas, cold gas |
| Transmission mode | Furnace car type, external circulation mechanism |
| Smoke exhaust mode | Utilization of waste heat, smoke exhaust from furnace body |
| Grouped equipment | Full-automatic outer circulation rotary line |
| Furnace structure | Modular assembly |
| Propulsion mode | Furnace head hydraulic propulsion, speed adjustable |
Please contact us for specific details, we will tailor-made for you!
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What does the product packaging look like?
Export packaging or according to customer requirements
