Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control

Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control
Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control

Large Image :  Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control

Product Details:
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Certification: CE
Model Number: Non-standard customized equipment
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 Set/Sets per Month
Contact Now

Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control

Description
Furnace Length: 32-48m Common Temperature: 1000-1300℃
Starting Power: 90-270KW/380V Maximum Use Temperature: 1350℃
Chamber Section Size: 600-1200mm Wide; 200-350mm High Furnace Structure: Modular Assembly
High Light:

Porcelain Decorating Ceramic Electric Kiln

,

PID Temperature Control Ceramic Electric Kiln

,

1200mm Wide Industrial Ceramic Furnace

Electric Ceramic Roller Kiln For Daily Ceramic Firing Decorative Intelligent Temperature Control



1, Product Overview

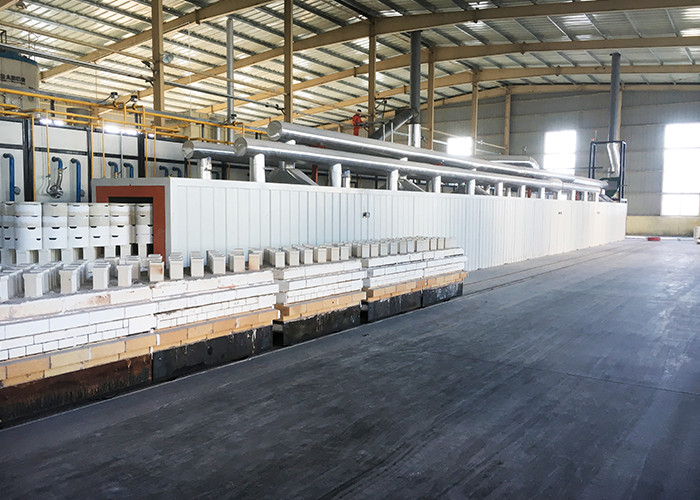

Daily ceramic firing (Decorating) electric roller furnace



Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control 0

2, Parameter attribute table



The main technical parameters
Furnace length

32-48m
Chamber section size 600-1200mm wide; 200-350mm high
Heating method High-temperature electric heating alloy wire + silicon carbon rod (selected according to different temperatures)
Starting power

90-270KW/380V
Maximum use temperature

1350℃
Common temperature

1000-1300℃
Control method PID intelligent temperature control system, zone multipoint control, touch screen control section, with automatic constant temperature, temperature adjustable over-temperature alarm and other superior performance.
Transfer method Helical gear transmission, variable frequency speed regulation
Roller material Ø50mm high temperature ceramic roller + silicon carbide roller (selected according to different temperatures)
Furnace structure Modular assembly
Grouped equipment Full-automatic outer-circulation slewing mechanism



3, Product Usage

Non-standard customized equipment, mainly used for oxidizing flame firing of high-grade porcelain such as bone china, high white porcelain, art porcelain, etc. Suitable for large-scale continuous production.
It also can be used for: Decorating of high-grade porcelain.
Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control 1
Porcelain Decorating Ceramic Electric Kiln PID Intelligent Temperature Control 2



4, FAQ



Q: Are you trading or manufacturer ?
A: We are a company, and we have our own factory
Q: How long is your delivery time?
A: Negotiable
Please contact us for details, we will tailor-made for you!
