|Furnace Length:||32-48m||Common Temperature:||1000-1300℃|
|Starting Power:||90-270Kw/380V||Maximum Use Temperature:||1350℃|
|Chamber Section Size:||600-1200mm Wide; 200-350mm High||Furnace Structure:||Modular Assembly|

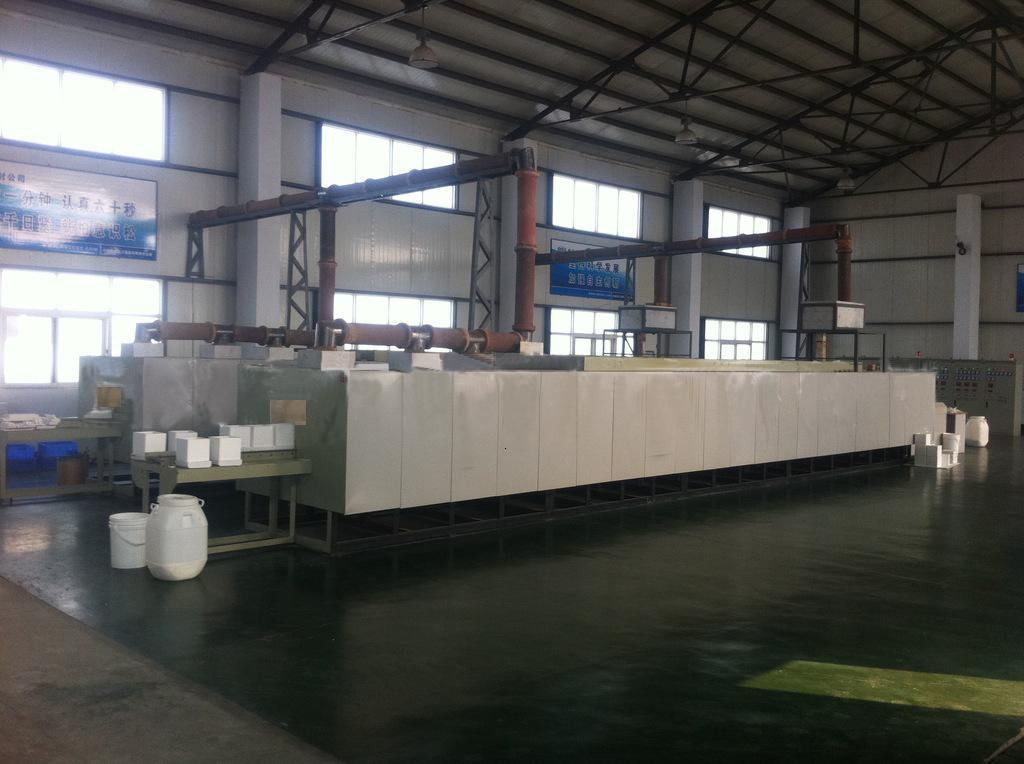

Single Hole Zirconia Sintering Furnace,
Pusher Kiln 1700℃,
High Efficiency Zirconia Sintering Furnace
|Equipment use||High temperature sintering for zirconia structure ceramics, corundum ceramic products|
|Maximum temperature||1700 ° C|
|Furnace size||9000LX300WX270H (other size can be customized)|
|Inner gas atmosphere||Air|
|heater||U-shaped silicon molybdenum rod|
1, multi-layered palletty, through the push plate continuously handle, the product sequentially through the temperature rise zone, the constant temperature zone, the cooling area, and realizes continuous sintering.
2, the push booth is a continuous sintering furnace, providing different furnace temperature zones and lengths according to the product temperature process curve, suitable for large quantities, product workers
Art stability, good performance.
3, the transmission system adopts hydraulic transmission, stable operation, no jitter, crawling.
4, use both side surface vertical heating mode, so that the product is uniform.
5. Implement the automatic rotation operation, using PLC control, product operation is reliable.
|mark||The above parameters are for reference only, this device is non-standard equipment, which is customized according to the actual process requirements of the product.|
