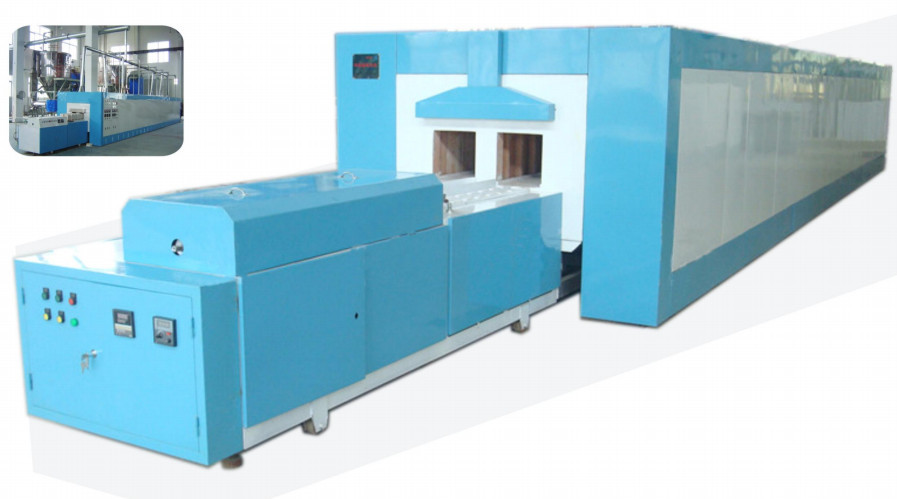

High Temperature Electric Heating Plate Furnace For Electronic Ceramic Firing
Mainly used for high-temperature sintering of various structural ceramic products such as 95 ceramic parts, 99 ceramic parts, 5G ceramic parts, zirconia products, corundum ceramic parts, etc., suitable for continuous production.
| The main technical parameters | |
| Chamber length |
9-15m |
| Common temperature |
1400-1600℃ |
| Temperature uniformity | ± 5 ℃ (constant temperature area) |
| Maximum operating temperature |
1700℃ |
| Product into the furnace mode | Single push plate, double push plate |
| Supporting push plate conventional size | 250mm × 250mm; 320mm × 320mm, etc. |
| Heating temperature zone | Zone 5-8, 10-16 temperature control points, push the upper and lower temperature control |
| Control mode | SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring |
|
Furnace structure |
Modular assembly |
| Propulsion mode | Completely automatic hydraulic propulsion external circulation system |
| Electric heating element | Silicon molybdenum rod |
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What does the product packaging look like?
Export packaging or according to customer requirements
Delivery period: Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement
