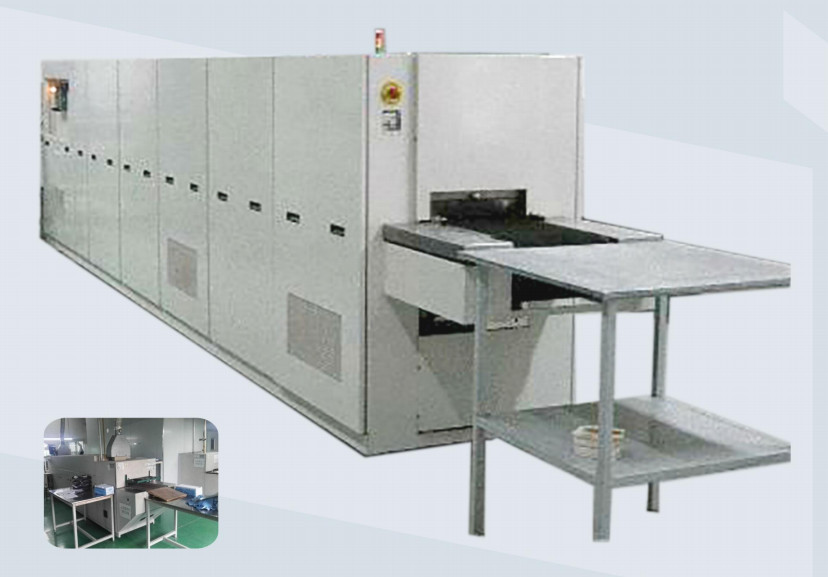

Mesh Belt Electronic Ceramic Electric Heating Silver Furnace
The surface silver high-temperature reduction sintering of piezoelectric ceramics and electronic ceramics is suitable for large-scale continuous production.
1. Control mode: PID intelligent program temperature control system, SCR thyristor module temperature control, with automatic constant temperature, adjustable temperature,
Superior performance such as over temperature alarm.
2. Lifting method: hydraulic lifting platform
3. Furnace material: alumina hollow ball +1400 mullite insulation brick
If you have a special sintering process, please contact us, we will tailor it for you!
| The main technical parameters | |
| Chamber length |
6-9m |
| Operating temperature |
900℃ |
| Power |
40-60KW/380V |
| Temperature uniformity | ± 3 ℃ (constant temperature area) |
| Transfer method | 310S heat-resistant stainless steel mesh belt, frequency conversion speed regulation |
| Chamber Section size | Width: 300-500; height: 80-120mm |
| Heating temperature zone | 3-4 temperature zones, 6-8 temperature control points, up and down temperature control |
| Control mode | PID intelligent temperature control system, SCR thyristor module control, 485 communication, with automatic constant temperature and temperature Adjustable, over temperature alarm and other superior performance. |
| Furnace structure | Modular assembly |
| Heating element | Far infrared electrothermal quartz tube |
Please contact us for specific details, we will tailor-made for you!
