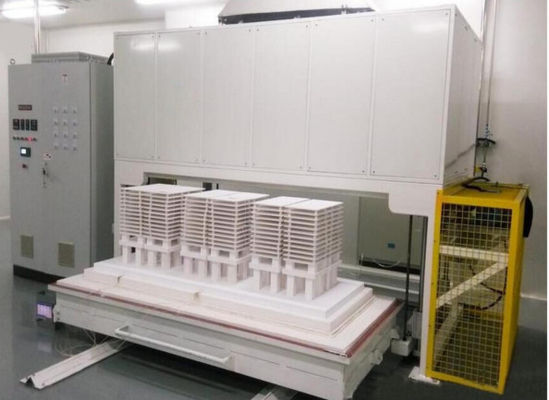

Lift Type High-Temperature Structure Ceramic Sintering Furnace
This furnace is mainly used for high-temperature sintering of alumina products such as zirconia products, corundum products, and 99 ceramic parts, suitable for small batch intermittent production.
| The main technical parameters | |
| Chamber size |
Length 800-1500mm × width 500-800mm × height 400-800mm |
| Maximum operating temperature |
1700℃ |
| Power |
36-90KW/380V |
| Temperature control point | 1-2 |
| Chamber material | Alumina hollow ball +1400 mullite insulation brick |

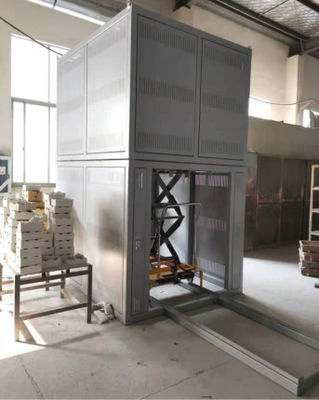

| Lifting method | Hydraulic lifting platform |
| Control mode | PID intelligent program temperature control system, SCR thyristor module temperature control, with automatic constant temperature, temperature adjustable, Superior performance such as over temperature alarm. |
| Heating element | U-shaped silicon molybdenum rod |
Please contact us for specific details, we will tailor-made for you!
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What does the product packaging look like?
Export packaging or according to customer requirements
Delivery period: Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement
