Name: Daily Ceramic Firing Flower Baking Gas Roller Kiln
Brand: Yixing Sunny Furnace Co., Ltd
SKU: Non-standard customized equipment
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Gas Power: 1.2-3 Million Kcal

Furnace Structure: Modular Assembly

Common Temperature: 1000-1300℃

Chamber Section Size: Width 600-1200mm; Height 200-350mm

Maximum Use Temperature: 1350℃

Furnace Length: 32-48m

Highlight:

Flower Baking Gas Roller Kiln

Ceramic Firing Gas Roller Kiln

Basic Infomation

Place of Origin: Jiangsu,China

Brand Name: Yan Yang Tian

Certification: CE

Model Number: Non-standard customized equipment

Payment & Shipping Terms

Packaging Details: Export package or according the customer's requirement

Delivery Time: Negotiable

Payment Terms: T/T, L/C, Western Union

Supply Ability: 5 Set/Sets per Month

Gallery

Daily Ceramic Firing Flower Baking Gas Roller Kiln

Product Description

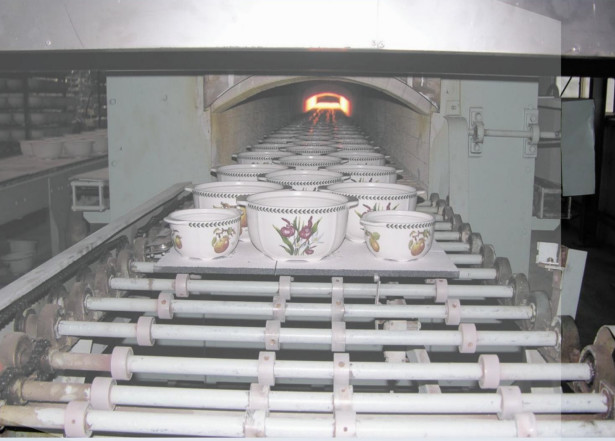

Daily Ceramic Firing (Flower Baking) Gas Roller Kiln

1, Furnace information

This furnace is mainly used for oxidizing (reducing) flame firing of ceramic wine bottles, high-end daily-use ceramics, etc., suitable for large-scale continuous production.

It adopts electric heating, roller bar transmission, PLC computer automatic control to achieve product temperature setting and process adjustable, remote monitoring and other superior performance.

2, Parameter attribute table

The main technical parameters
Furnace length	32-60m
Chamber section size	Width 800-1500mm; height 200-350mm
Gas power	1.2-3 million kcal
Heating mode	Natural gas, LPG
Maximum use temperature	1300℃
Common temperature	1000-1250℃
Control mode	PID intelligent temperature control system, partition multipoint control, touch screen control section, with automatic constant temperature and temperature Adjustable over temperature alarm and other superior performance.
Furnace structure	Modular assembly
Transfer method	Helical gear transmission, frequency conversion speed regulation
Grouped equipment	Full-automatic external circulation rotary mechanism
Roller material	Ø50mm high temperature ceramic roller + silicon carbide roller (selected according to different temperature)

3, Product application

Non-standard customized equipment, mainly used for oxidizing flame firing of high-grade porcelain parts such as bone china, high white porcelain, art porcelain, etc., suitable for continuous production in large quantities
It also can be used for : decorating of high-grade porcelain.

Daily Ceramic Firing Flower Baking Gas Roller Kiln 0

4, FAQ

1, Are you trading or manufacturer ?
We are a company, and we have our own factory

2,How long is your delivery time?
Negotiable

Please contact us for specific details, we will tailor-made for you!

5, Package

Delivery period: Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according to the customer's requirement
