Medium Temperature 1300 ℃ Sintering Brick Tunnel Kiln

1 Set
MOQ
Negotiable
Price
Medium Temperature 1300 ℃ Sintering Brick Tunnel Kiln
Features Gallery Product Description Request A Quote
Features
Specifications
Kiln Length: 52-150m
Section Size Of Furnace Mouth: 2. 1.5-4.5m Wide. 1.5-2m High (it Can Be Customized According To Requirements)
Designed Maximum Operating Temperature: 1300℃
Common Temperature: 1000-1250℃
Designed Daily Output (24h): 15,000-80,000 Standard Bricks
Combustion Power: 1.5-10 Million Kcal
Supporting Electric Power: 30-60KW/380V
Kiln Structure: Modular Assembly, 2-3 Meters / Section
Highlight:

Sintering Brick Tunnel Kiln

,

Medium Temperature Brick Tunnel Kiln

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 5 Set/Sets per Month
Product Description



Medium Temperature Sintering Tunnel Kiln For 1300 ℃ Gas (Oil) Clay Building Materials



1, Product Overview

Kilns are used for construction, refractory and abrasive industries.
Medium temperature sintering tunnel kiln for 1300 ℃ gas (oil) clay building materials.

2, Parameters



The main technical parameters
Kiln length

52-150m

Section size of furnace mouth 1.5-4.5m wide.1.5-2m high (It can be customized according to requirements)
Designed maximum operating temperature

1300℃

Common temperature

1000-1250℃

Designed daily output (24h) 15000-80000 standard bricks
Temperature control method PID automatic temperature control system, touch screen control interface 485 communication, automatic constant temperature,
temperature adjustable, over temperature alarm and other superior performance.
Fuel Natural gas, LPG, light oil, heavy oil
Combustion power 1.5-10 million kcal
Supporting electric power

30-60Kw/380V

Temperature zone quantity Five (preheating zone, constant temperature, slow cooling, rapid cooling, preheating utilization)
Transmission method Orbital kiln car, internal and external circulation closed operation
Products into the kiln mode Fully automatic hydraulic propulsion
Exhaust way The kiln head power exhaust, design the circulating waste heat utilization mechanism as required

Kiln structure

Modular assembly, 2–3 meters / section



3, Product application

It is mainly used for construction materials such as clay sintered bricks, clean water bricks, road sintered bricks, split bricks, etc.
High temperature sintering.
It also can be used for: Medium temperature sintering of clay insulation bricks and ceramic products.

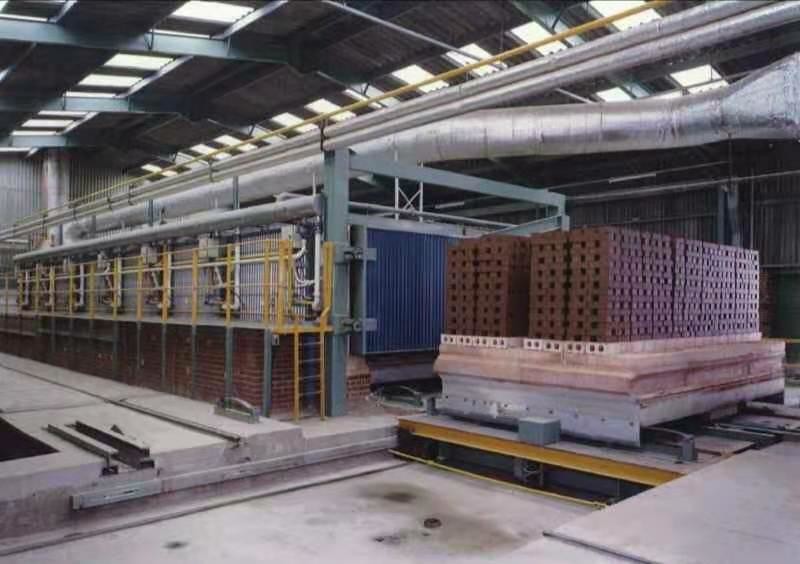

Medium Temperature 1300 ℃ Sintering Brick Tunnel Kiln 0

Please contact us for specific details, we will tailor-made for you!
