PID Control Gas Fired Shuttle Refractory Brick Tunnel Kiln

$PID Control Gas Fired Shuttle Refractory Brick Tunnel Kiln$

$PID Control Gas Fired Shuttle Refractory Brick Tunnel Kiln$

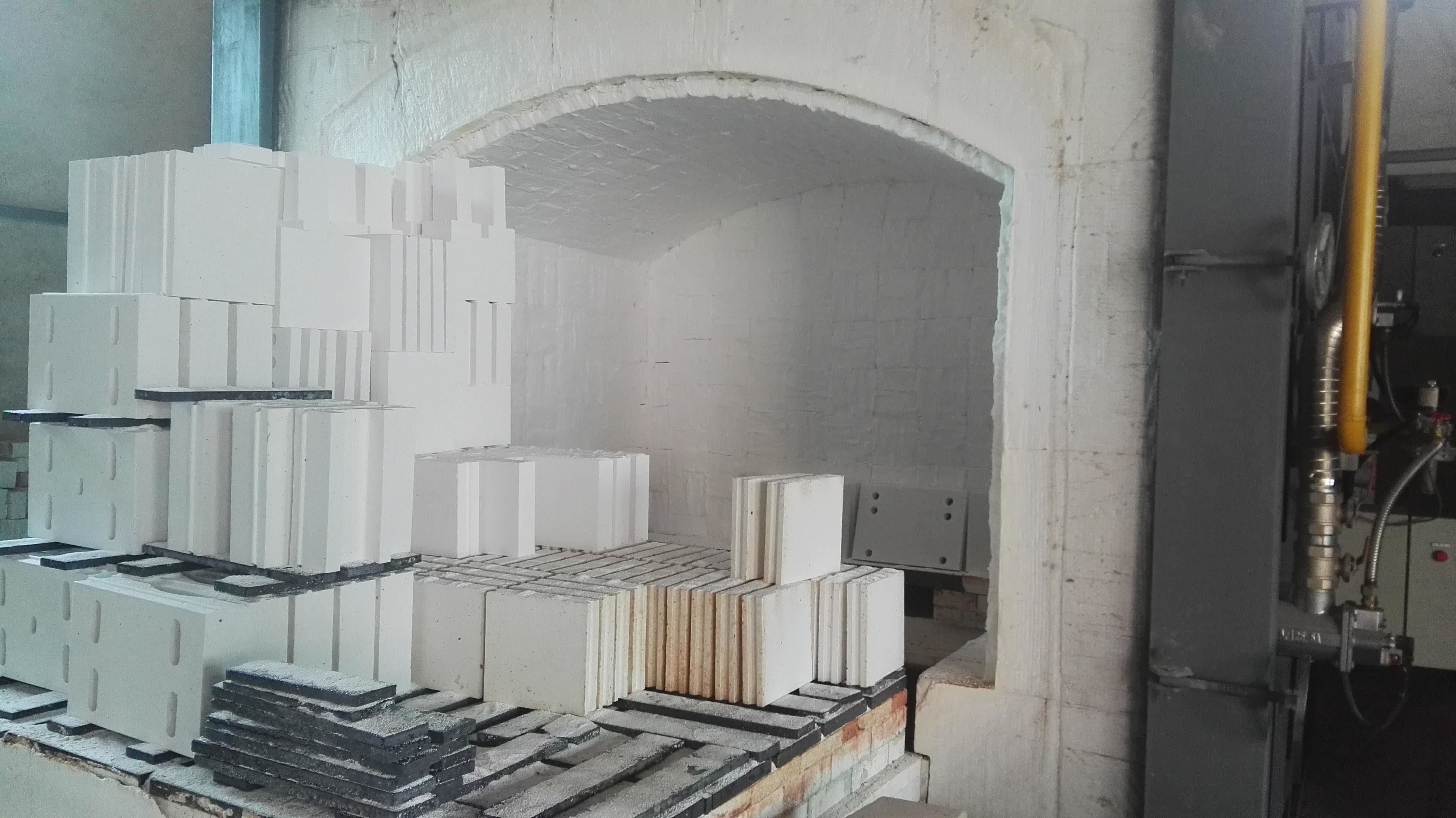

Large Image : PID Control Gas Fired Shuttle Refractory Brick Tunnel Kiln

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	Yan Yang Tian
Model Number:	Non-standard customized equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Export package or according the customer's requirement
Delivery Time:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	5 Set/Sets per Month

Contact Now

PID Control Gas Fired Shuttle Refractory Brick Tunnel Kiln

Description

Chamber Volume:	1-20m³	Maximum Use Temperature:	1700℃
Kiln Temperature Uniformity:	±5-10℃	Chamber Material:	Alumina Hollow Ball + Corundum Mullite + Ceramic Fiber Cotton
Brand:	Yan Yang Tian	Number Of Burners:	According To The Size Of The Chamber
High Light:	Refractory Brick Tunnel Kiln , Gas Brick Tunnel Kiln

Brick Gas Kiln Gas ( Oil ) Ultra - High Temperature Fired Shuttle Kiln Refractory Brick Kiln

1 , Product Overview

1700 ℃ Gas ( Oil ) Ultra - High Temperature Firing Shuttle Kiln

Temperature control method:PID automatic temperature control system, touch screen control interface 485 communication, automatic constant temperature,Temperature adjustable, over temperature alarm and other superior performance.

2 , Parameter attribute table

The main technical parameters
Chamber volume	1-20m³
Chamber material	Alumina hollow ball + corundum mullite + ceramic fiber cotton
Maximum use temperature	1700℃
Kiln temperature uniformity	±5-10℃
Heating mode	Natural gas, liquefied petroleum gas, light oil
Burner arrangement	Placed on both sides of the kiln
Number of burners	According to the size of the chamber
Products into the kiln mode	The electric kiln car can be designed according to the volume to facilitate the production operation
Smoke exhaust method	Waste heat utilization + power exhaust

3 , Product Usage

Uses: mainly used for sintering high-temperature refractory materials such as hollow alumina products, corundum mullite products, silicon nitride combined with silicon carbide

$PID Control Gas Fired Shuttle Refractory Brick Tunnel Kiln 0$

Please contact us for more details, we will tailor it for you!

4. FAQ

1. Are you a trader or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What does the product packaging look like?
Export packaging or according to customer requirements
