Name: Continuous 1400 Industrial High Temperature Industrial Ceramic Rollers For Kilns
Brand: Yixing Sunny Furnace Co., Ltd
SKU: Non-standard customized equipment
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Kiln Length: 36-80m

Chamber Section Size: Width 1200-3000mm; Height 200-350mm

Maximum Work Temperature: 1300℃

Common Temperature: 950-1200℃

Starting Power: 1.2-3.5 Million Kcal

Kiln Structure: Modular Assembly

Highlight:

Brick Sintered Roller Kiln

Gas Fired Roller Kiln

Basic Infomation

Place of Origin: Jiangsu,China

Brand Name: Yan Yang Tian

Model Number: Non-standard customized equipment

Payment & Shipping Terms

Packaging Details: Export package or according the customer's requirement

Delivery Time: Negotiable

Payment Terms: T/T, L/C, Western Union

Supply Ability: 5 Set/Sets per Month

Gallery

Continuous 1400 Industrial High Temperature Industrial Ceramic Rollers For Kilns

Product Description

Continuous 1400 Industrial High Temperature Industrial Ceramic Rollers For Kilns

1, Product Overview

The precise temperature-controlled roller kiln is a reliable and efficient solution for industries that require consistent and controlled heat treatment processes. Ensures high-quality and reproducible firing results due to its accurate temperature control capabilities. Optimized heating processes lead to energy savings and reduced operational costs. Enables higher throughput and faster processing times, enhancing overall production efficiency.

It can be tailored to specific industry requirements, offering flexibility in operation.

2, Parameters

The main technical parameters
Serial number	name	Description
1	Kiln length	36-80m
2	Chamber section size	Width 1200-3000mm; height 200-350mm
3	Heating fuel	Natural gas, liquefied petroleum gas, light oil
4	Starting power	1.2-3.5 million kcal
5	Maximum operating temperature	1300℃
6	Common temperature	950-1200℃
7	Control method	PID intelligent temperature control system, partition multipoint control, touch screen control section, with Excellent performance such as automatic constant temperature, adjustable temperature and over temperature alarm.
8	Transfer method	Helical gear transmission, frequency conversion speed regulation
9	Roller material	Ø50-80mm heat-resistant steel metal roller (select materials according to different temperatures)
10	Kiln structure	Modular assembly
11	Grouped equipment	Full-automatic outer circulation slewing mechanism

3, Product application

It is mainly used for high-temperature firing of Western-style tiles, permeable bricks, split bricks and small tiles

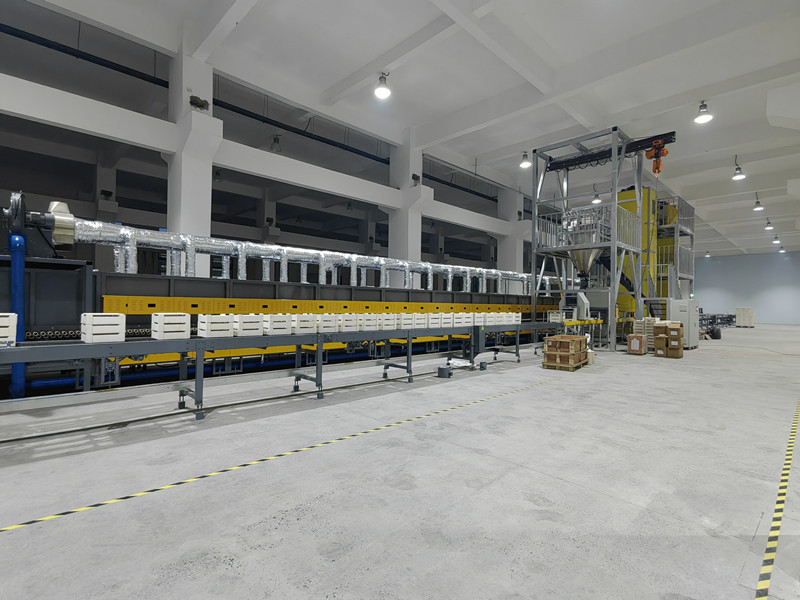

Continuous 1400 Industrial High Temperature Industrial Ceramic Rollers For Kilns 0

Continuous 1400 Industrial High Temperature Industrial Ceramic Rollers For Kilns 1

Please contact us for specific details, we will tailor-made for you!
