Product Details:
|
| Kiln Length: | 36-60m | Section Size Of Furnace Mouth: | 1.0-2.5m Wide. 0.8-1.5m High (It Can Be Customized According To Requirements) |
|---|---|---|---|
| Designed Maximum Operating Temperature: | 1600℃ | Common Temperature: | 1350-1550℃ |
| Combustion Power: | 2.5-10 Million Kcal | Supporting Electric Power: | 30-60KW/380V |
| Kiln Structure: | Modular Assembly Type, 2-3m / Section | Fuel: | Natural Gas, Liquefied Petroleum Gas, Light Oil, Heavy Oil |
| High Light: | Continus Brick Tunnel Kiln,Sintered Brick Tunnel Kiln |
||

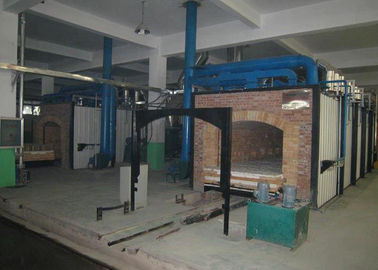

Refractory Brick Manufacturer Kiln Car Type Gas Sintered Tunnel Kiln
| The main technical parameters | |
| Kiln length |
36-60m |
| Section size of Kiln mouth | 1.0-2.5m wide. 0.8-1.5m high (it can be customized according to requirements) |
| Designed maximum operating temperature |
1600℃ |
| Common temperature |
1350-1550℃ |
| Fuel | Natural gas, liquefied petroleum gas, light oil, heavy oil |
| Combustion power | 2.5-10 million kcal |
| Supporting electric power |
30-60KW/380V |
| Temperature zone quantity | Five (preheating zone, constant temperature, slow cooling, rapid cooling, preheating utilization) |
| Transmission method | Rail kiln cart, internal and external circulation closed operation |
| Products into the kiln method | Fully automatic hydraulic propulsion |
| Smoke exhaust method | Kiln head power smoke exhaust, design circulating waste heat utilization mechanism according to need |
|
Kiln structure |
Modular assembly type, 2-3m / section |
Please contact us for specific details, we will tailor-made for you!
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What does the product packaging look like?
Export packaging or according to customer requirements
