1700 ℃ Gas ( Oil ) Ultra - High Temperature Firing Shuttle Kiln

1 Set
MOQ
Negotiable
Price
1700 ℃ Gas ( Oil ) Ultra - High Temperature Firing Shuttle Kiln
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber Volume: 1-20m³
Maximum Use Temperature: 1700℃
Kiln Temperature Uniformity: ±5-10℃
Chamber Material: Alumina Fiber Board + Corundum Mullite + Ceramic Fiber Cotton
Burner Arrangement: Placed On Both Sides Of The Kiln
Heating Mode: Natural Gas, Liquefied Petroleum Gas, Light Oil
Highlight:

Gas Brick Tunnel Kiln

,

CE Brick Tunnel Kiln

,

High Temperature Firing Shuttle Kiln

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Yan Yang Tian
Certification: CE
Model Number: Non-standard customized equipment
Payment & Shipping Terms
Packaging Details: Export package or according the customer's requirement
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 Set/Sets per Month
Product Description

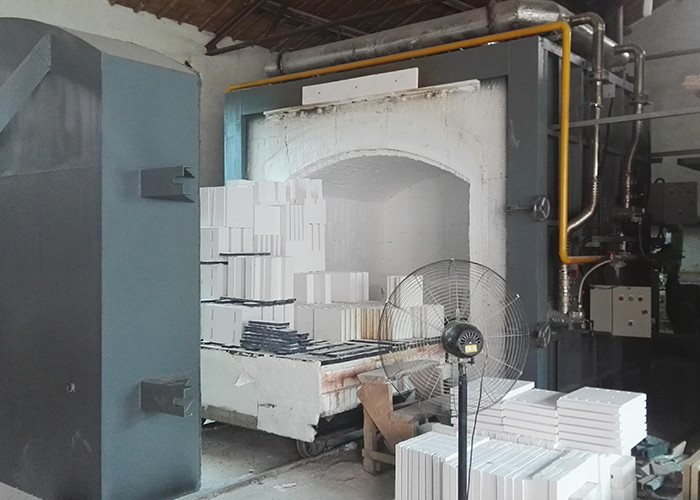

1700 ℃ Gas (Oil) Ultra - High Temperature Firing Shuttle Kiln



1, Product Overview

1700 ℃ Gas (Oil) Ultra - High Temperature Firing Shuttle Kiln

2, Parameter attribute table



The main technical parameters
Chamber volume

1-20m³

Chamber material Alumina fiber board  + corundum mullite + ceramic fiber cotton
Maximum use temperature

1700℃

Temperature control method PID automatic temperature control system, touch screen control interface 485 communication, automatic constant temperature,
Temperature adjustable, over temperature alarm and other superior performance.
Kiln temperature uniformity

±5-10℃

Heating mode Natural gas, liquefied petroleum gas, light oil
Burner arrangement

Placed on both sides of the Kiln

Number of burners According to the size of the chamber
Products into the kiln mode The electric kiln cart can be designed according to the volume to facilitate the production operation
Smoke exhaust method Waste heat utilization + power exhaust



3, Product purpose

It is mainly used for sintering high-temperature refractory materials such as hollow alumina products, corundum mullite products, silicon nitride combined with silicon carbide



1700 ℃ Gas ( Oil ) Ultra - High Temperature Firing Shuttle Kiln 0

Please contact us for more details, we will tailor it for you!
