|Kiln Length:||36-60m||Section Size Of Furnace Mouth:||1.0-2.5m Wide; 0.8-1.5m High (can Be Customized According To Requirements)|
|Designed Maximum Operating Temperature:||1600℃||Common Temperature:||1350-1550℃|
|Combustion Power:||2.5-10 Million Kcal||Supporting Electric Power:||30-60Kw/380V|
|Kiln Structure:||Modular Assembly Type, 2-3m / Section||Use Fuel:||Natural Gas, Liquefied Petroleum Gas, Light Oil, Heavy Oil|

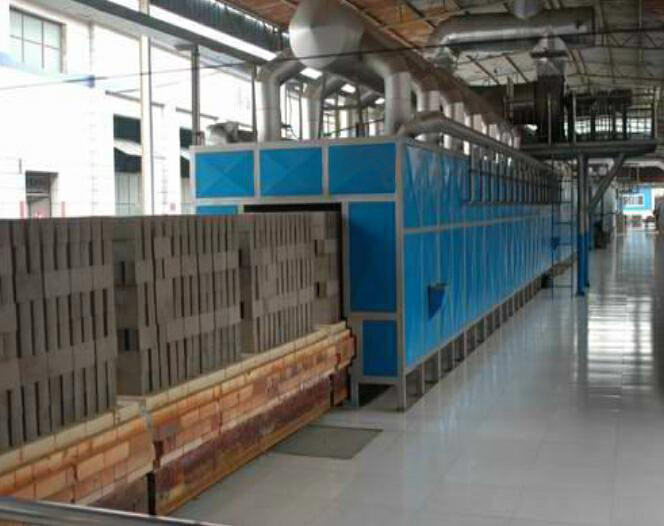

Natural Gas Clay Brick Tunnel Kiln,
Refractory Sintered Brick Tunnel Kiln,
High Temperature Sintering Clay Brick Furnace
|The main technical parameters|
|Section size of furnace mouth||1.0-2.5m wide; 0.8-1.5m high (can be customized according to requirements)|
|Designed maximum operating temperature||
|Use fuel||Natural gas, liquefied petroleum gas, light oil, heavy oil|
|Combustion power||2.5-10 million kcal|
|Supporting electric power||
|Temperature zone quantity||Five (preheating zone, constant temperature, slow cooling, rapid cooling, preheating utilization)|
|Transmission method||Rail kiln car, internal and external circulation closed operation|
|Products into the kiln mode||Fully automatic hydraulic propulsion|
|Smoke exhaust method||Kiln head power smoke exhaust, design circulating waste heat utilization mechanism according to need|
|Modular assembly type, 2-3m / section|
Please contact us for specific details, we will tailor-made for you!
1. Are you a trader or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
3. Can the product be customized?
Can be customized
4. What does the product packaging look like?
Export packaging or according to customer requirements
Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according the customer's requirement
Contact Person: Linda Yu
