Gas Sintering Architectural Refractory Brick Tunnel Kiln Brick Kiln Machine

$Gas Sintering Architectural Refractory Brick Tunnel Kiln Brick Kiln Machine$

$Gas Sintering Architectural Refractory Brick Tunnel Kiln Brick Kiln Machine$

Large Image : Gas Sintering Architectural Refractory Brick Tunnel Kiln Brick Kiln Machine

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	Yan Yang Tian
Model Number:	Non-standard customized equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Export package or according the customer's requirement
Delivery Time:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	5 Set/Sets per Month

Contact Now

Gas Sintering Architectural Refractory Brick Tunnel Kiln Brick Kiln Machine

Description

Kiln Length:	36-60m	Section Size Of Furnace Mouth:	1.0-2.5m Wide; 0.8-1.5m High (can Be Customized According To Requirements)
Designed Maximum Operating Temperature:	1600℃	Common Temperature:	1350-1550℃
Combustion Power:	2.5-10 Million Kcal	Supporting Electric Power:	30-60Kw/380V
Kiln Structure:	Modular Assembly Type, 2-3m / Section	Use Fuel:	Natural Gas, Liquefied Petroleum Gas, Light Oil, Heavy Oil
High Light:	Architectural Refractory Brick Tunnel Kiln , Gas Sintering Brick Tunnel Kiln , Refractory Sintered Tunnel Brick Kiln Machine

Gas Sintering Architectural Refractory Brick Tunnel Kiln Brick Kiln Machine

1 , Product Overview

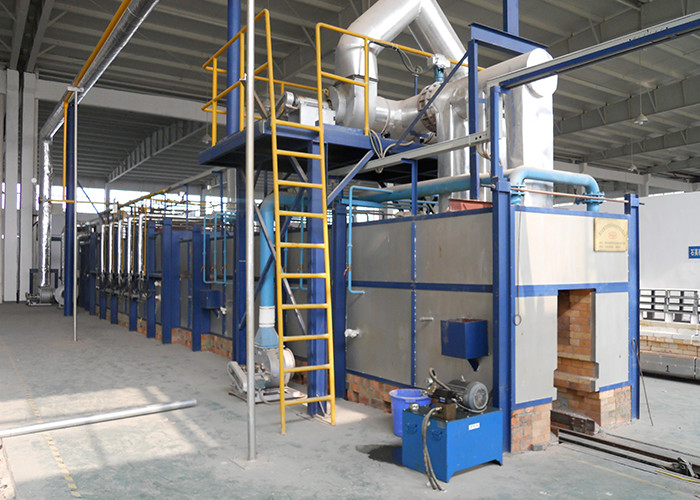

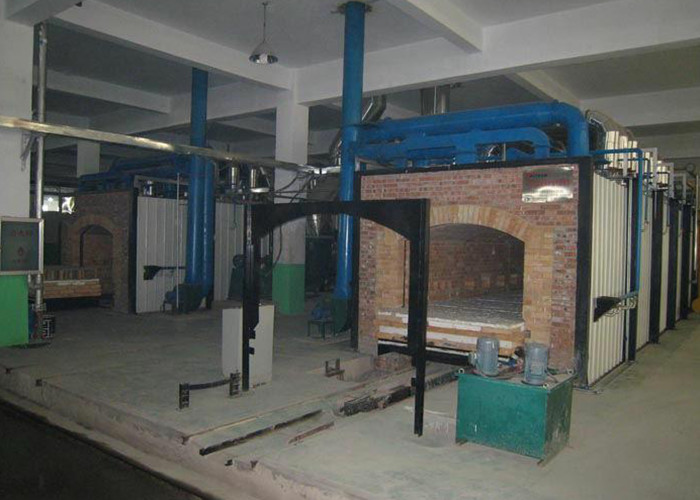

1600 ℃ kiln car type gas high temperature refractory sintered tunnel kiln

Temperature control method: PID automatic temperature control system, touch screen control interface 485 communication, automatic constant temperature,Temperature adjustable, over temperature alarm and other superior performance.

2 , Parameter attribute table

The main technical parameters
Kiln length	36-60m
Section size of furnace mouth	1.0-2.5m wide; 0.8-1.5m high (can be customized according to requirements)
Designed maximum operating temperature	1600℃
Common temperature	1350-1550℃
Use fuel	Natural gas, liquefied petroleum gas, light oil, heavy oil
Combustion power	2.5-10 million kcal
Supporting electric power	30-60Kw/380V
Temperature zone quantity	Five (preheating zone, constant temperature, slow cooling, rapid cooling, preheating utilization)
Transmission method	Rail kiln car, internal and external circulation closed operation
Products into the kiln mode	Fully automatic hydraulic propulsion
Smoke exhaust method	Kiln head power smoke exhaust, design circulating waste heat utilization mechanism according to need
kiln structure	Modular assembly type, 2-3m / section

3 , Product Usage

Uses: mainly used for high-temperature sintering of high-grade refractory materials such as corundum mullite products, alumina hollow balls, zirconia products, silicon nitride combined with silicon carbide products
Can also be used for: zirconia, alumina powder and high temperature rare earth calcination

$Gas Sintering Architectural Refractory Brick Tunnel Kiln Brick Kiln Machine 0$

Please contact us for specific details, we will tailor-made for you!

4. FAQ

1. Are you a trader or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What does the product packaging look like?
Export packaging or according to customer requirements

5 , Package

Delivery period:
Shipped within 45 days from the date of payment by the buyer or negotiable
Packing: Export package or according the customer's requirement
