Product Details:
|
| Furnace Length: | 32-48m | Common Temperature: | 1000-1800℃ |
|---|---|---|---|
| Starting Power: | 90-270Kw/380V | Maximum Use Temperature: | 1350℃ |
| Chamber Section Size: | 600-1200mm Wide; 200-350mm High | Material: | Ceramic Fiber Bulk |
| High Light: | High Flexibility Ceramic Fiber Paper,High MOR Ceramic Fiber Paper,ceramic fibre paper High Flexibility |
||
| Product Name | Classification Temperature | Working Temperature |
| ST Ceramic Fiber Paper | 1260℃ | 1000℃ |
| HP Ceramic Fiber Paper | 1260℃ | 1100℃ |
| HAZ Ceramic Fiber Paper | 1400℃ | 1200℃ |
| HZ Ceramic Fiber Paper | 1430℃ | 1350℃ |
Description:

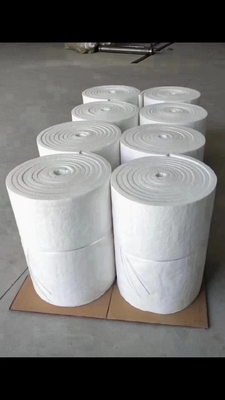

Ceramic Fiber Paper is made on high automation continuous
production line which developed from traditional paper making.
Ceramic Fiber Paper is easy to be handled and cut. Its flexibility allows it to be wrapped or rolled, to fit most complex configurations.
Dimension:
| Item | |||||
| Length(mm) | Width(mm) | Thickness(mm) | Density (kg/m3) | ||
| 190 | 200 | 220 | |||
| 60000 |
610,1220 |
1 | - | √ | - |
| 30000 | 2 | √ | √ | √ | |
| 20000 | 3 | √ | √ | √ | |
| 12000 | 5 | √ | √ | √ | |
| 10000 | 6 | √ | √ | √ | |
Other size according to the customers' requirement.
Characteristic:
Low heat capacity, low thermal conductivity.
Excellent thermal stability and thermal vibration resistance.
Excellent flexibility.
Good for re-processing
High MOR.
Typical Application:
Industrial insulating, sealing and protecting materials.
Electrical heating equipment insulation
Electrical heating element and instrument insulation
Insulating materials in Automotive.
Insulating materials of household appliances
